8. CYLINDER HEAD/VALVES
8-7
MXU 500
CAMSHAFT
REMOVAL/INSPECTION/
INSTALLATION
REMOVAL
Remove the cylinder head cover (refer to the
“CYLINDER HEAD COVER
REMOVAL/INSTALLATION” section in
this chapter).
Turn the crankshaft clockwise and align the
“T” mark on the flywheel with the index
mark on the right crankcase cover (refer to
the “VALVE CLEARANCE”section in the
chapter 3).

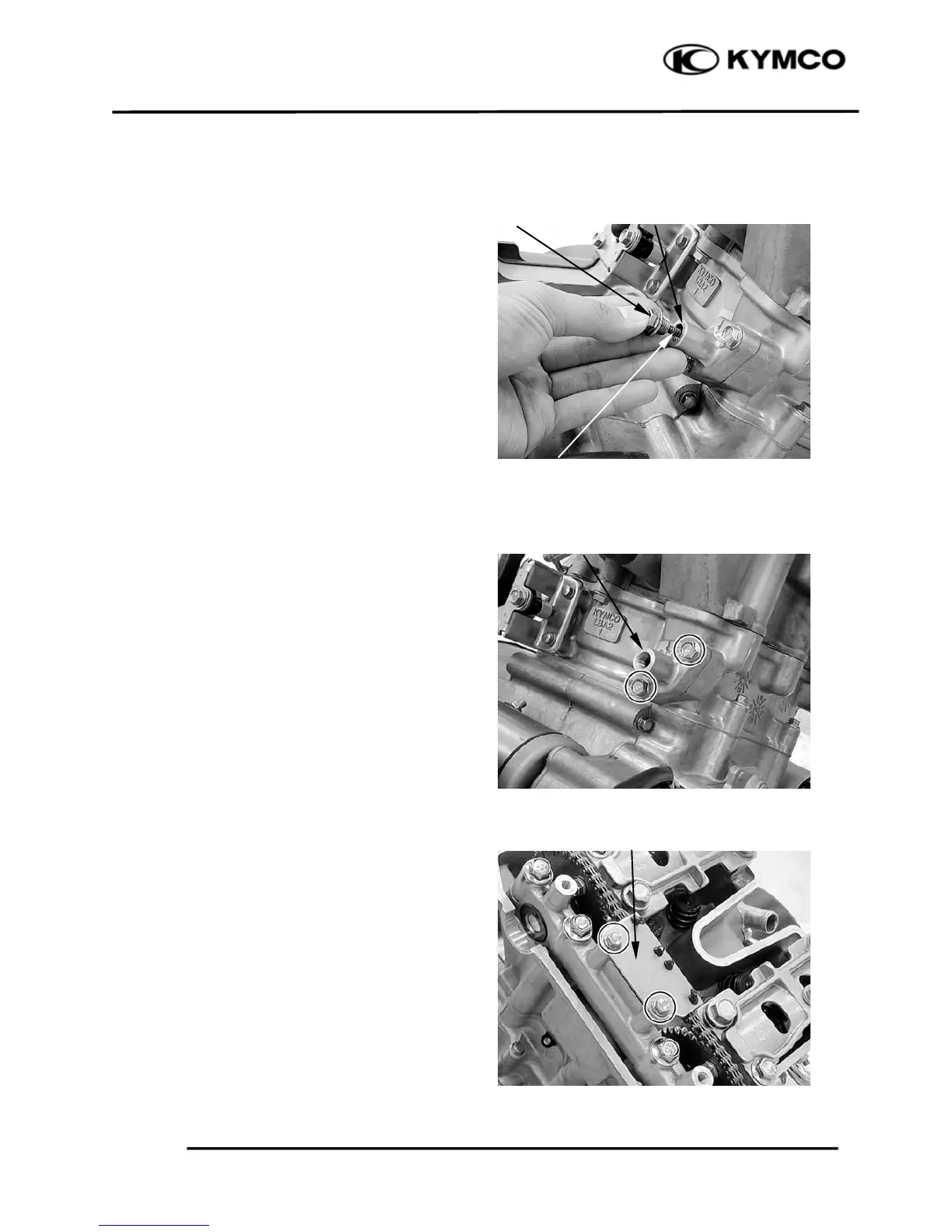

Remove the cam chain tensioner lifter sealing
bolt, spring and sealing washer.
Remove the two bolts, cam chain tensioner
and gasket.
Remove the two bolts and cam chain guide.
Bolt Washe
