8. CYLINDER HEAD/VALVES
8-8
MXU 500

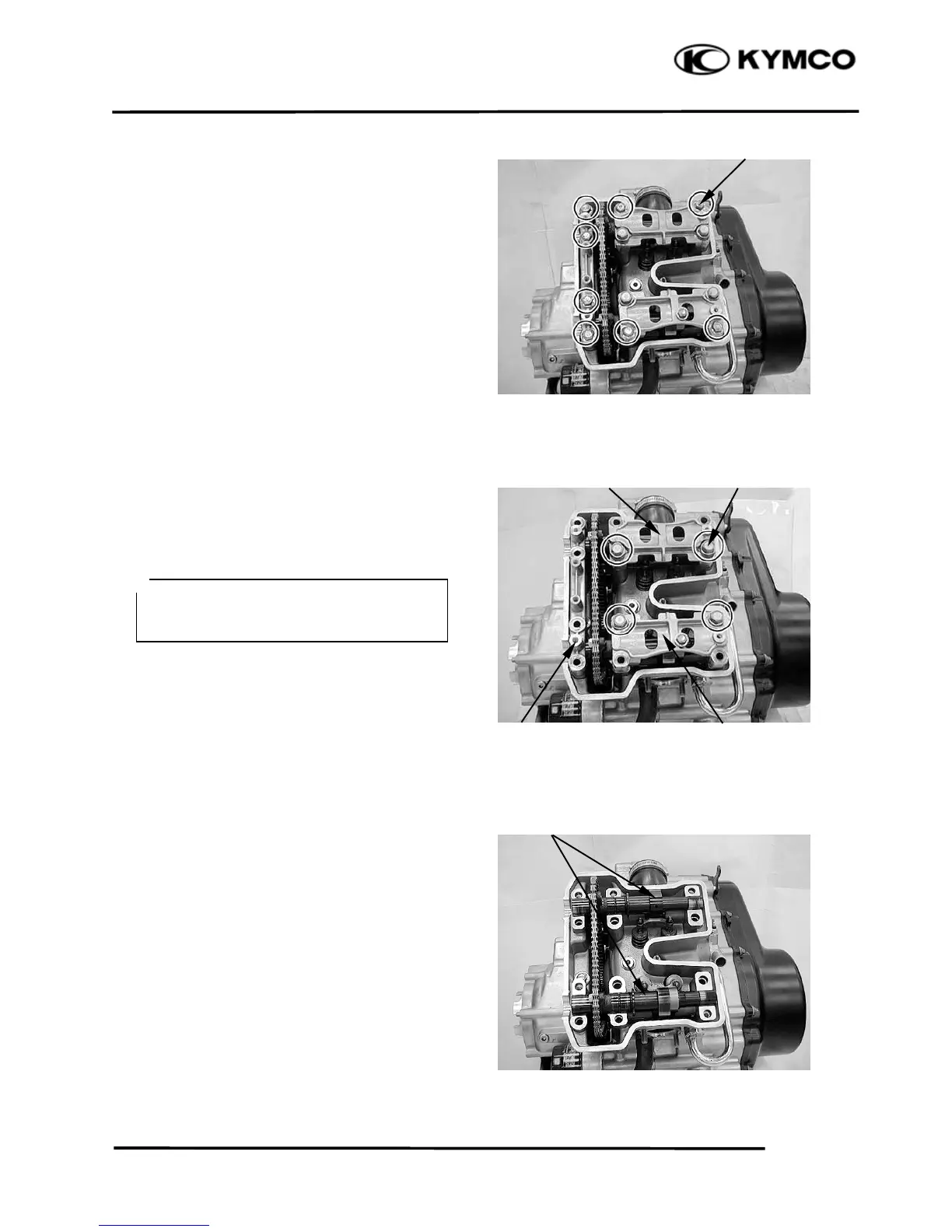

Loosen and remove the eight camshaft holder
bolts in a crisscross pattern in several steps.
Loosen and remove the four camshaft holder
bolts/washers in a crisscross pattern in
several steps, then remove the camshaft
holders.
Remove the camshafts.
Bolts
Camshaft Holder Camshaft Holder
Camshaft Holder Bolts/Washers
Camshafts
Suspend the cam chain with a piece of
wire to prevent the chain from falling
into the crankcase.
＊
