HANDLEBAR
REMOVAL/INSPECTION/
INSTALLATION

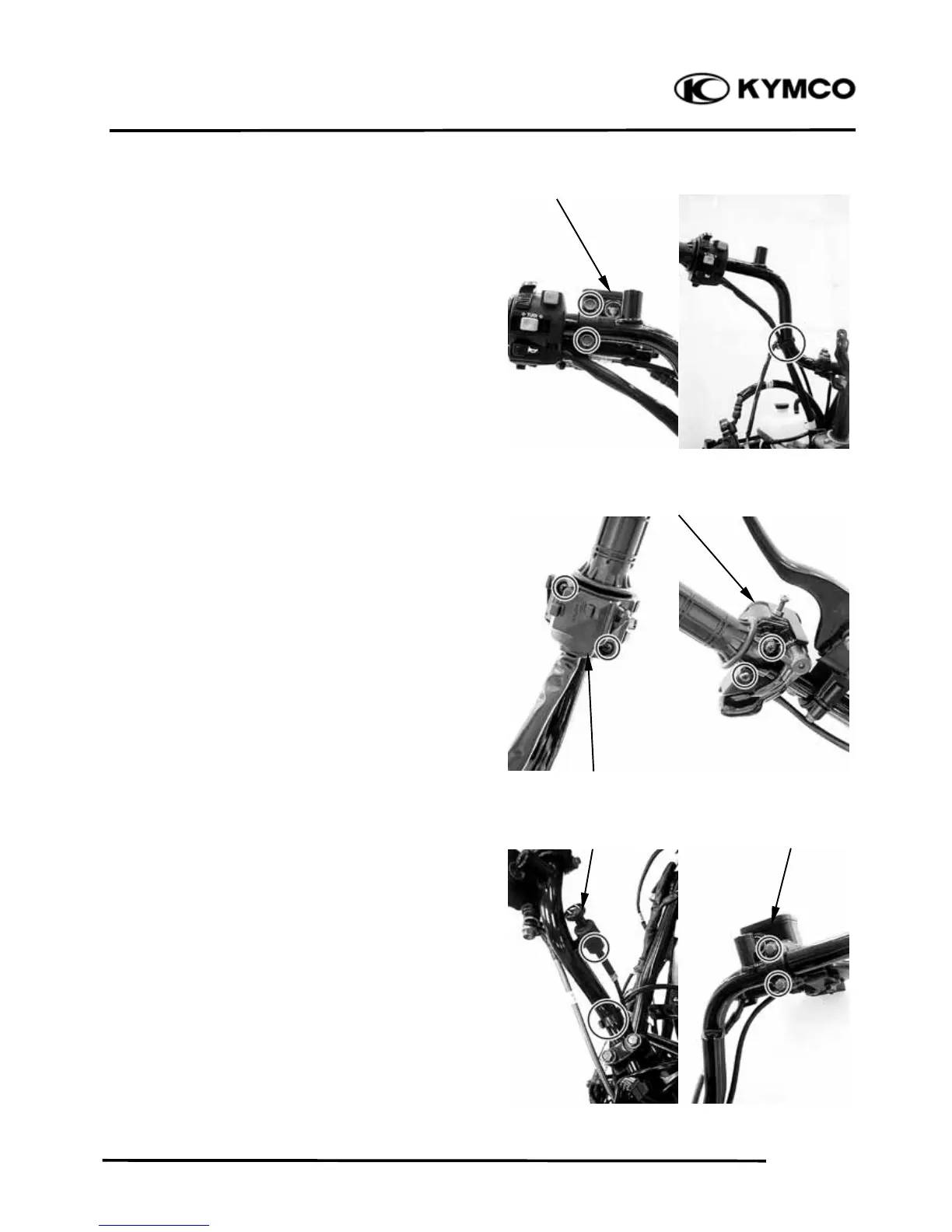

REMOVAL
Remove the frame cover (refer to the
“FRAME COVERS” section in the chapter
2).
Remove the two bolts and then remove left
master cylinder from the handlebar.
Remove the band and then remove the brake
light switch wire from the handlebar.
Remove the two screws and then remove
the left handlebar switch from the
handlebar.
Remove the two screws and then remove
the throttle lever assembly.
Remove the nut then remove the choke
knob from the handlebar.
Remove the band and then remove the brake
light wire and 2WD/4WD select switch wire
from the handlebar.
Remove the two bolts and then remove the
master right cylinder from the handlebar.
Master Cylinde
