INSTRUMENTS AND INDICATOR
(1) Multi-function display
(2)
(3)
(5)
(6) Low-range indicator light “L”
(7) High-range indicator light “H”
(8) Neutral indicator light “N”
(9) Reverse indicator light “N:
(10) Park indicator light “P”
(11)
(12)
Right turn signal indicator
High beam indicator
(4) Coolant temperature warning indicator
Set button
Mode button
Left turn signal indicator
(11)
(2)
(3)
(4)
(5)
(8)

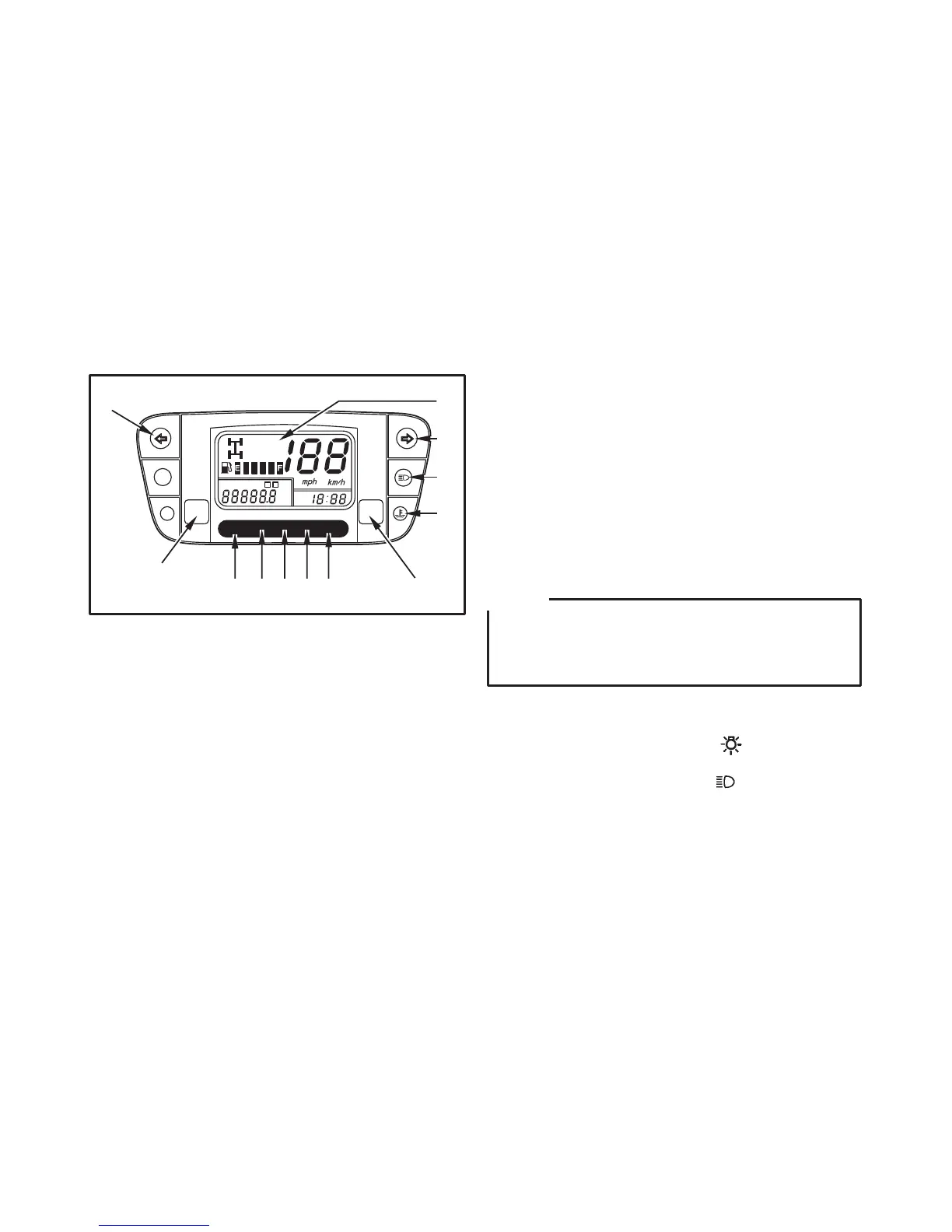

(1) Multi-function display
The display includes the following functions:
Speedometer
Odometer/Tripmeter
Digital clock
2WD/4WD indicator
Fuel gauge
(2) Right turn signal indicator
Flashes when the right turn signal operates.
(3) High beam indicator
The ignition switch is at the " " position, the
high beam indicator will light when the headlight
switch to select High beam ( ).
Both left and right turn signal indicator will flash at
the meantime when the hazard switch is operated
and turn signal switch is turned off.
NOTE:
(12) (1)
(7) (6)(9)(10)
AB
TRIPODO
mile
km
PM
2WD
4WD
SET
MODE
P RNH L
