AIR FILTER CLEANING
(See page 43.)
The air cleaner accumulates dust and must be
cleaned periodically. If the ATV is ridden in dusty
areas, the air cleaner must be cleaned at more
frequent intervals than specified in the
Maintenance Schedule. If the ATV is submerged
in water, the air cleaner should be checked and
water should be drained from the air cleaner
housing before starting the engine.

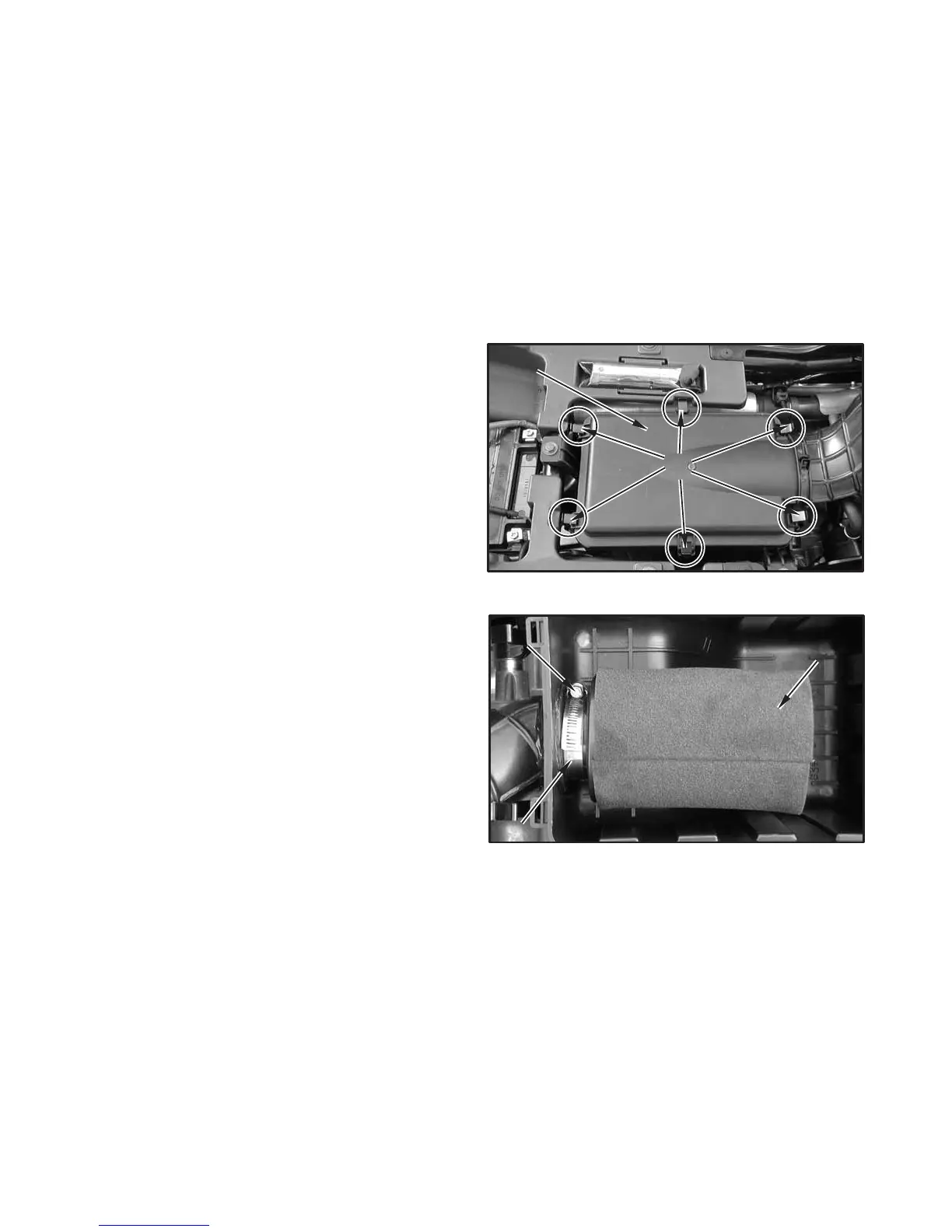

To clean the air cleaner:
1. Remove the seat.
2. Unlatch the six retainer clips (1) and remove
the air cleaner housing cover (2).
3. Loosen the screw ( 3) and remove the air
cleaner assembly ( 4) from the air cleaner
housing.
4. Unscrew the clamp (5)
(1)
(2)
(1) Retainer clips (2) Air cleaner housing cover
(3)
(4)
(5)
(3) Screw (4) (5)Air cleaner assembly Clamp
