20. LIGHTS/SWITCHES
20-2
MXU 500

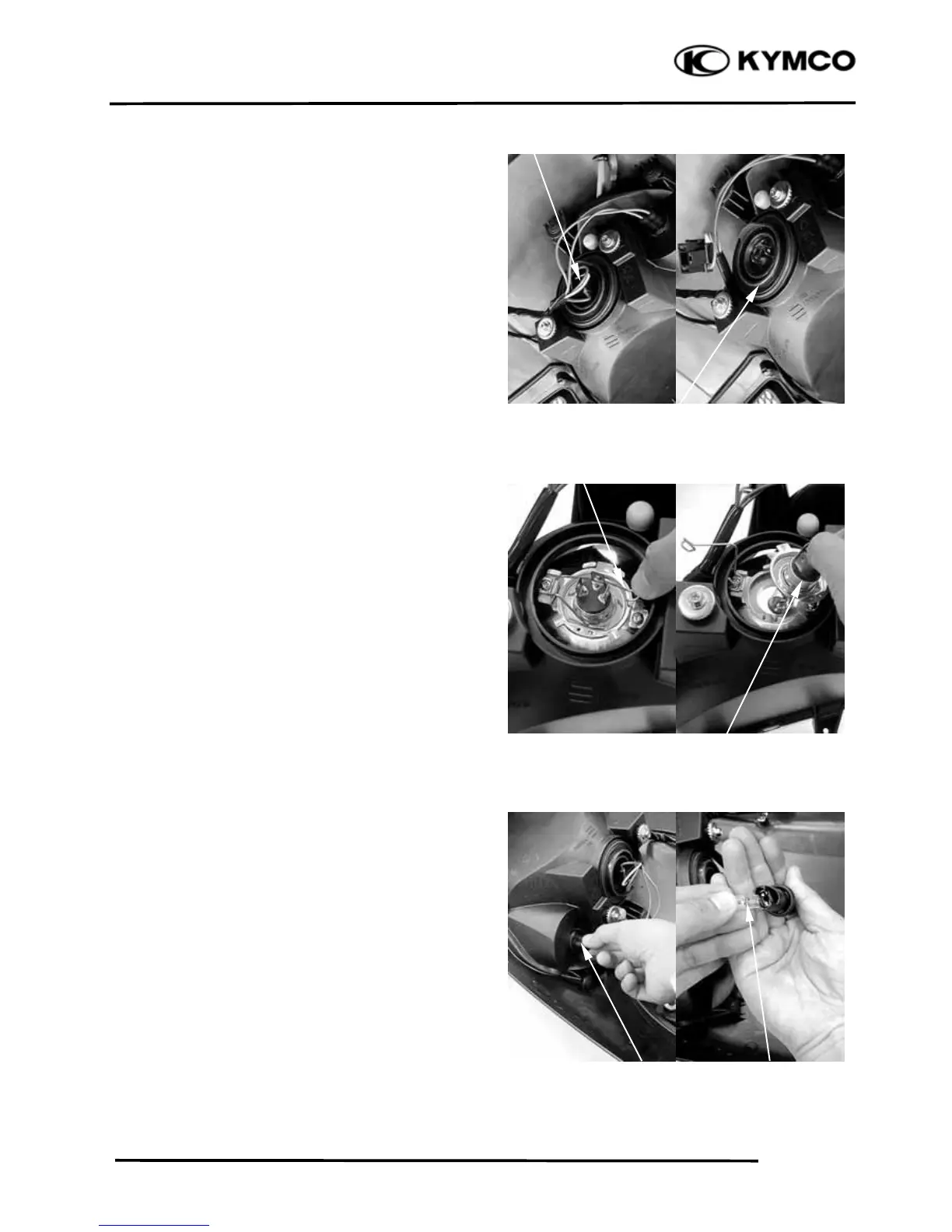

BULBS REMOVAL
HEADLIGHT
Disconnect the headlight wire connector.
Remove the rubber boot from the headlight
case.
Relax the lock clip to remove the bulb and
replace with a new one.
Install the bulb, aligning the bulb socket
groove with the bulb tab and set the lock
clip.
Connect headlight wire connector.
Install the rubber boot.
Install the front fender in the reverse order
of removal.
POSITION LIGHT
Remove the bulb socket by pulling it out.
Remove the bulb.
Install the bulb in the reverse order of
removal
Headlight Connector
Bulb Socket Bulb
Lock Clip
Rubber Boot
Bulb
