18. IGNITION SYSTEM
18-6
MXU 500

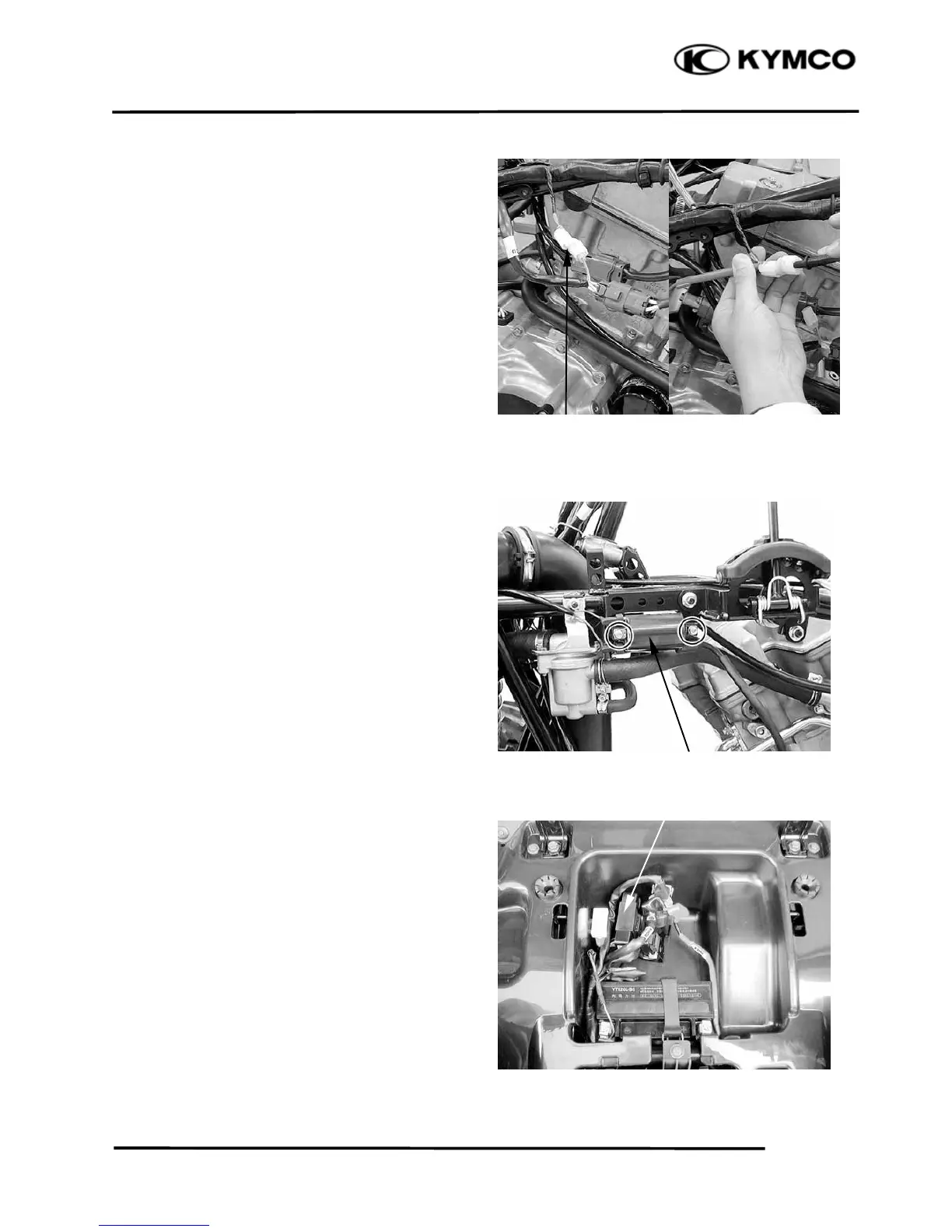

IGNITION PULSE GENERATOR
INSPECTION
Disconnect the ignition pulse generator
connector.
Measure the ignition pulse generator resistance
between the Green/White wire and Blue/Yellow
wire.
Standard: 791 : (20ºC/68ºF)
IGNITION COIL
REMOVAL/INSTALLATION
Disconnect the spark plug cap from the spark
plug (page 18-4).
Disconnect the ignition coil primary connectors.
Remove the two bolts and the ignition coil.
Installation is in the reverse order of removal.
IGNITION CONTROL MODULE
REMOVAL/INSTALLATION
Remove the seat (refer to the “FRAME
COVERS” section in the chapter 2).
Disconnect the ignition control module
connectors and remove the ignition control
module.
Ignition Pulse Generator Connecto
r
Ignition Control Module
Ignition Coil
