18. IGNITION SYSTEM
18-7
MXU 500

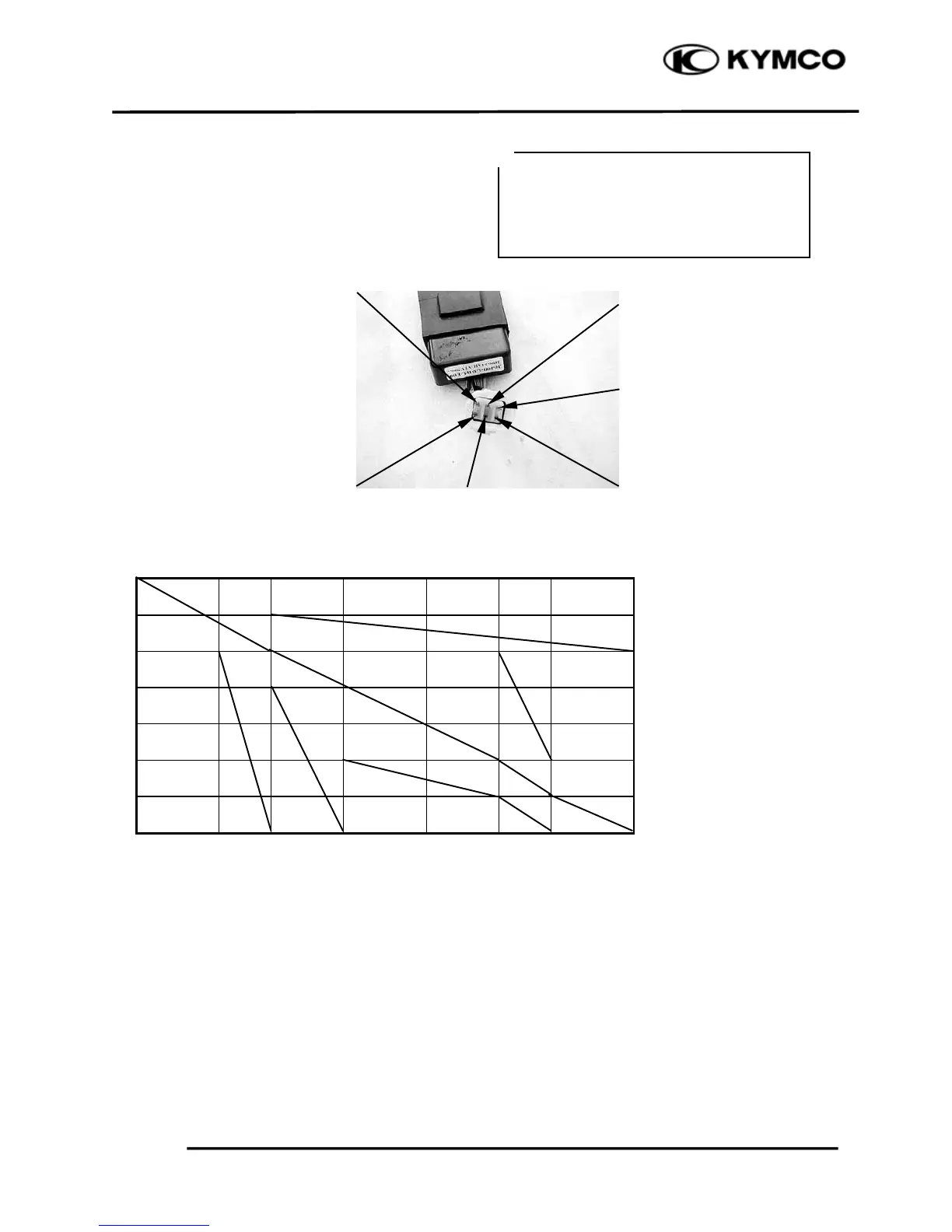

RESISTANCE INSPECTION
Measure the resistance between the terminals.
Unit: :
(
+
)
(-)
B/W G/GR L/Y G/W B/Y G
B/W
G/GR 6.7 M 6.7 M 6.7 M
L/Y 0.785 K Continue
G/W 0.778 K 0.785 k
B/Y
G Continue 0.785 K
Due to the semiconductor in circuit, it
is necessary to use a specified tester for
accurate testing. Use of an improper
tester in an improper range may give
false readings.
＊
G
/
W B/Y
B/W
G
G/GR
L/Y
