KYMCO MXU 500 - Oil Pipe Removal;Installation

4. LUBRICATION SYSTEM
4-15
MXU 500

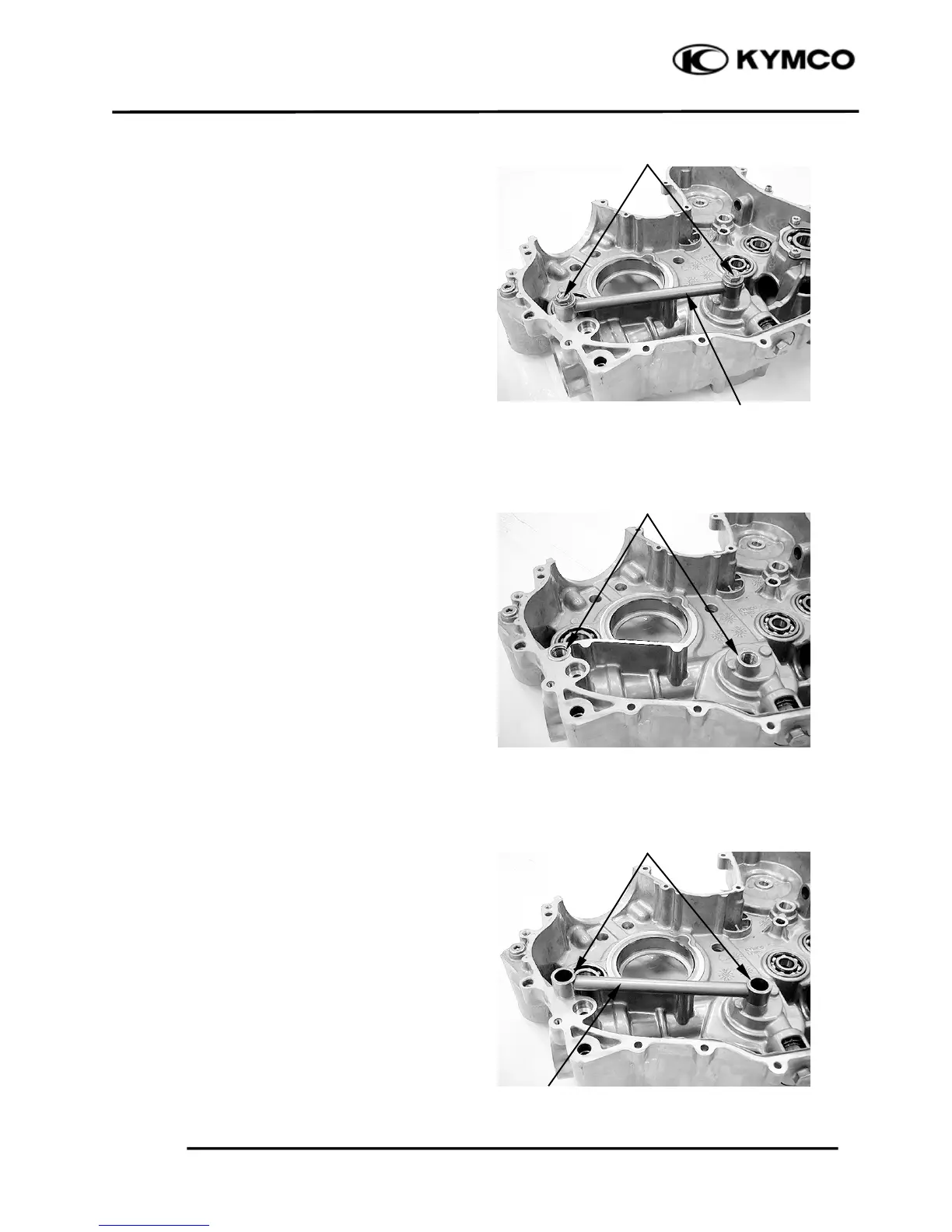

OIL PIPE
REMOVAL/INSTALLATION
REMOVAL
Remove the two bolts, washers (on the oil
pipe), oil pipe and washers (under oil pipe).
INSTALLATIION
Install the inner washers on the right
crankcase.
Install the oil pipe with the thick side face
upward.
Oil Pipe/Washer (under oil pipe)
Oil Pipe
Thick Side
Washers
Bolts/Washers (on the oil pipe)
