15. REAR WHEEL/AXLE/SHOCK
ABSORBER/SWING ARM
15-15
MXU 500
REAR SWING ARM
REMOVAL/INSTALLATION
REMOVAL
Remove the rear axle housing (refer to the
“REAR AXLE HOUSING
REMOVAL/INSPECTION/
INSTALLATION” section in this chapter).

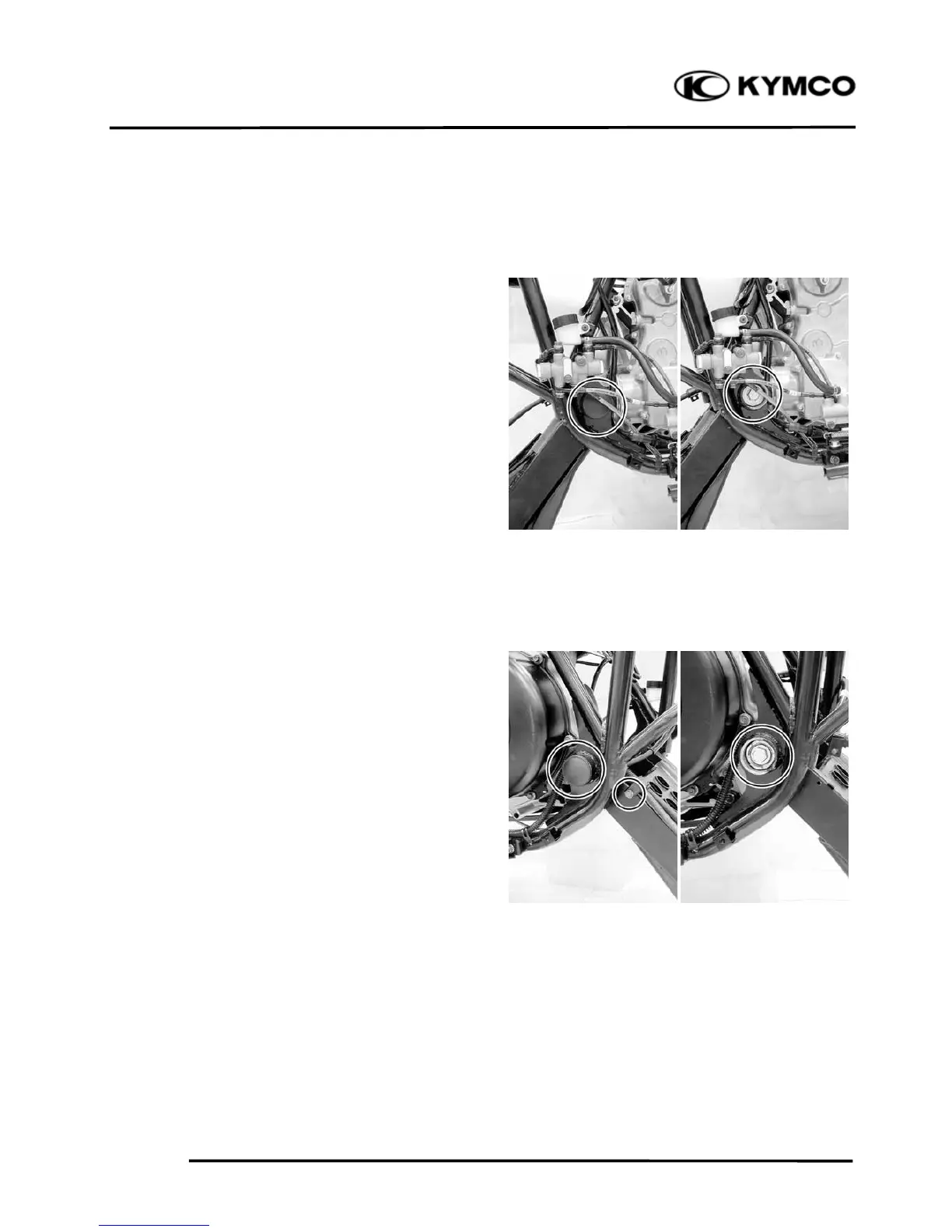

Remove the swing arm pivot bolt cap.
Remove the right pivot bolt.
Remove the bolt and band, then remove the
rear brake fluid hoses from swing arm.
Remove the swing arm pivot bolt cap.
Remove the left pivot lock nut using the
special tool.
Special tool:
Lock nut wrench A120F000013
Remove the left pivot adjusting bolt.
