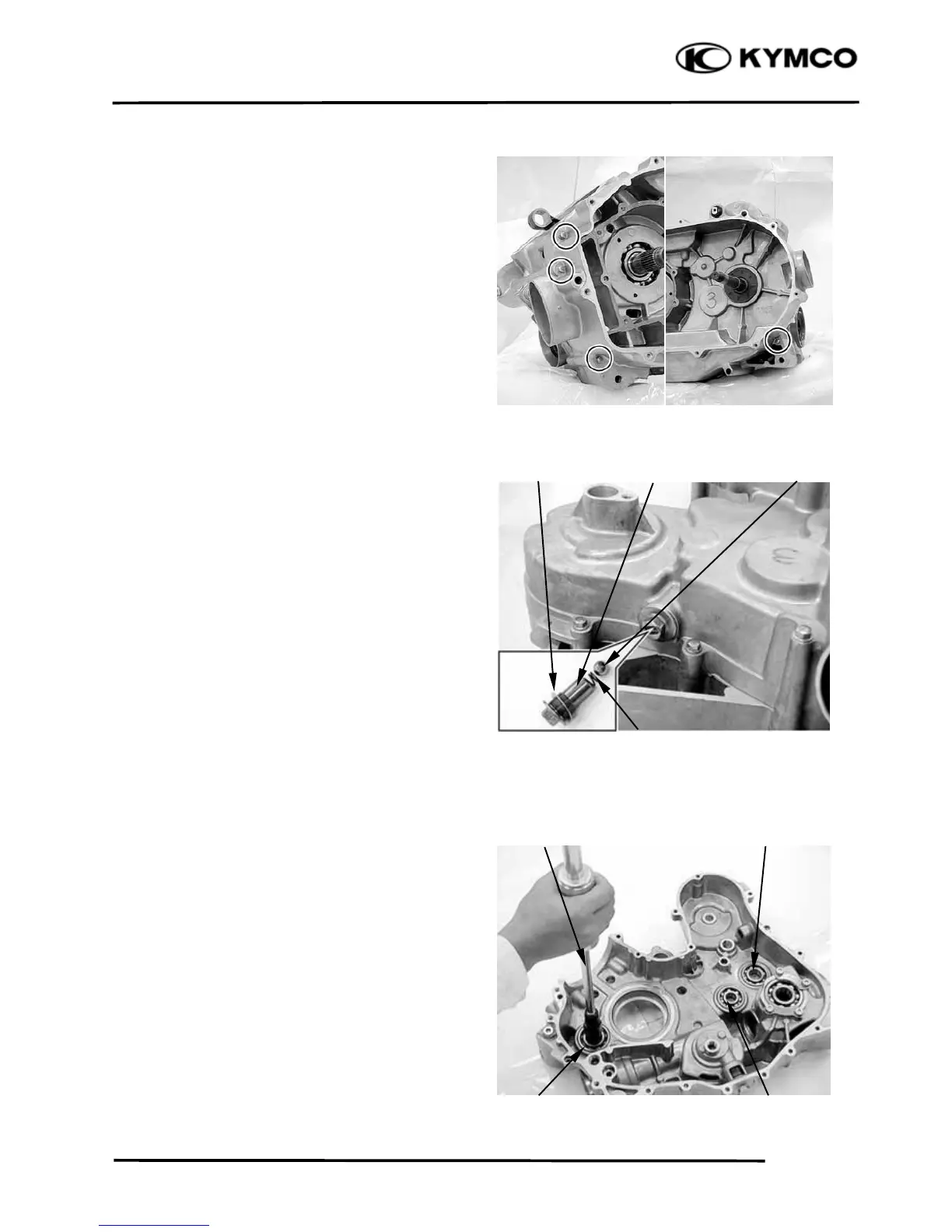

KYMCO MXU 500 - Bearing Replacement in the Right Crankcase

11.FINAL REDUCTION/
TRANSMISSION SYSTEM
11-12
MXU 500
Install and tighten the bolts in a crisscross
pattern in 2 or 3 steps
Torque:
1.2 kgf-m (12 N-m, 8.6 lbf-ft) Apply oil
Install the stopper, spring, washer and plug.
Tighten the stopper plug to the specified
torque.
Torque: 4.8 kgf-m (48 N-m, 35 lbf-ft)
BEARING REPLACEMENT IN
THE RIGHT CRANKCASE
BALANCE SHAFT/COUNTERSHAFT/
PRIMARY DRIVE SHAFT BEARING
REPLACEMENT
Remove the balance
shaft/countershaft/primary drive shaft bearing
by using the special tool.
Special tool:
Bearing puller A120E00037
Balance Shaft Bearing Countershaft Bearing
Bearing Pulle
r
Primary Drive Shaft Bearing
Spring
Washer Plug Stoppe
r
