KYMCO MXU 500 - 2 Wd;4 Wd Selecting System

20. LIGHTS/SWITCHES
20-10
MXU 500
2WD/4WD SELECTING SYSTEM
The 2WD/4WD selecting system consists of
the following components:
Ɣ 2WD/4WD selecting button
Ɣ 2WD switch
Ɣ 4WD switch
Ɣ 2WD/4WD change ECU
Ɣ 2WD/4WD motor
Ɣ Battery
TROUBLSHOOTING

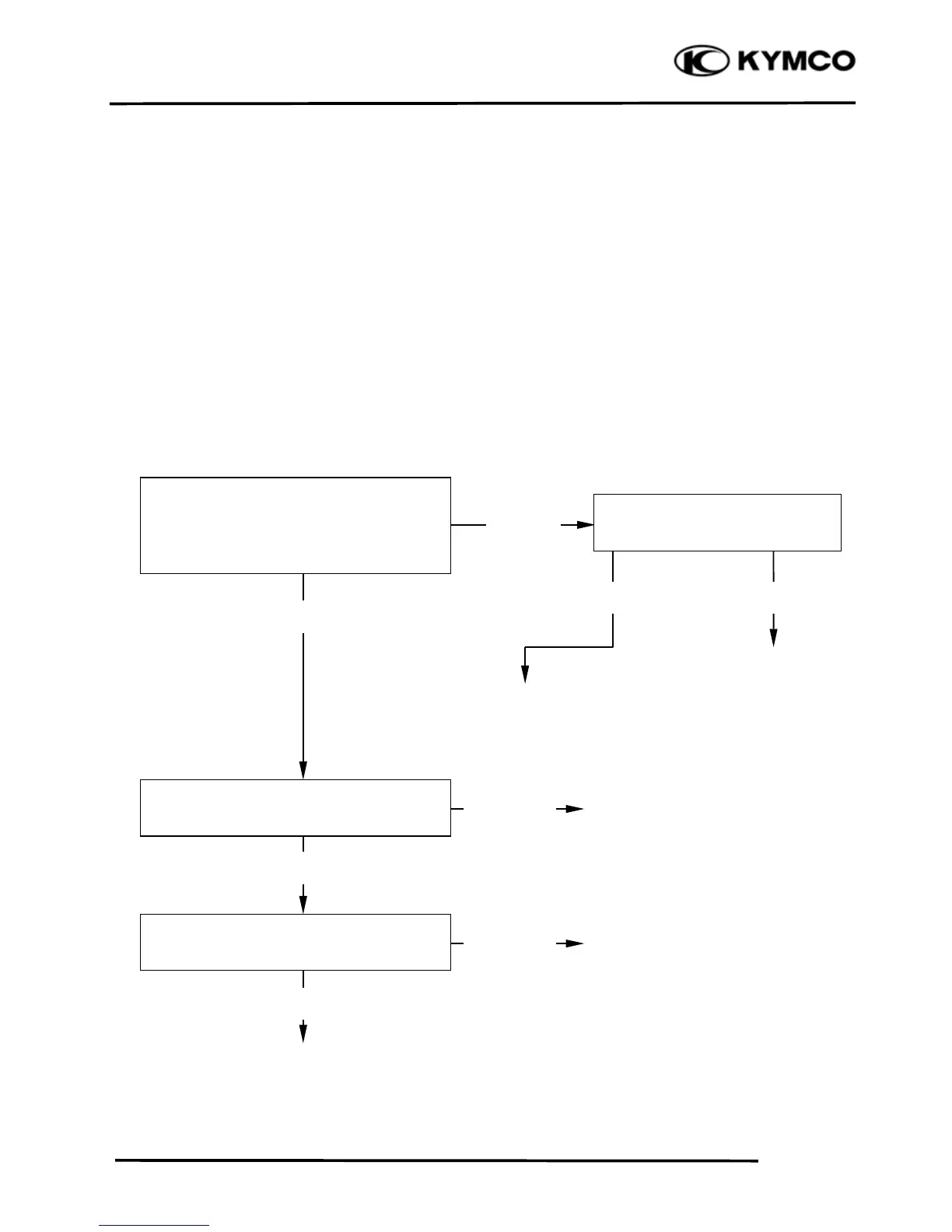

Does not shift to 2WD/4WD (2WD/4WD
motor will not run.)
(Cont’d)
Faulty 2WD/4WD motor
Ɣ Faulty 2WD/4WD change ECU
Ɣ Improper 2WD/4WD motor connector
connection
Faulty 2WD/4WD selecting button
Faulty 2WD/4WD change ECU
Turn on the ignition switch. Listen for a
click from the 2WD/4WD change ECU
when the 2WD/4WD selecting button is
p
ushed.
N
o clic
k
Clicks
Runs
Check the 2WD/4WD motor.
(See page 20-11)
Does not run
Incorrect
Check the 2WD/4WD selecting button.
(See page 20-11)
Correct
Check the 2WD/4WD change ECU.
(See page 12)
Incorrect
Correct
