5. FUEL SYSTEM
5-9
MXU 500
CARBURETOR
DISASSEMBLY/INSPECTION/
ASSEMBLY

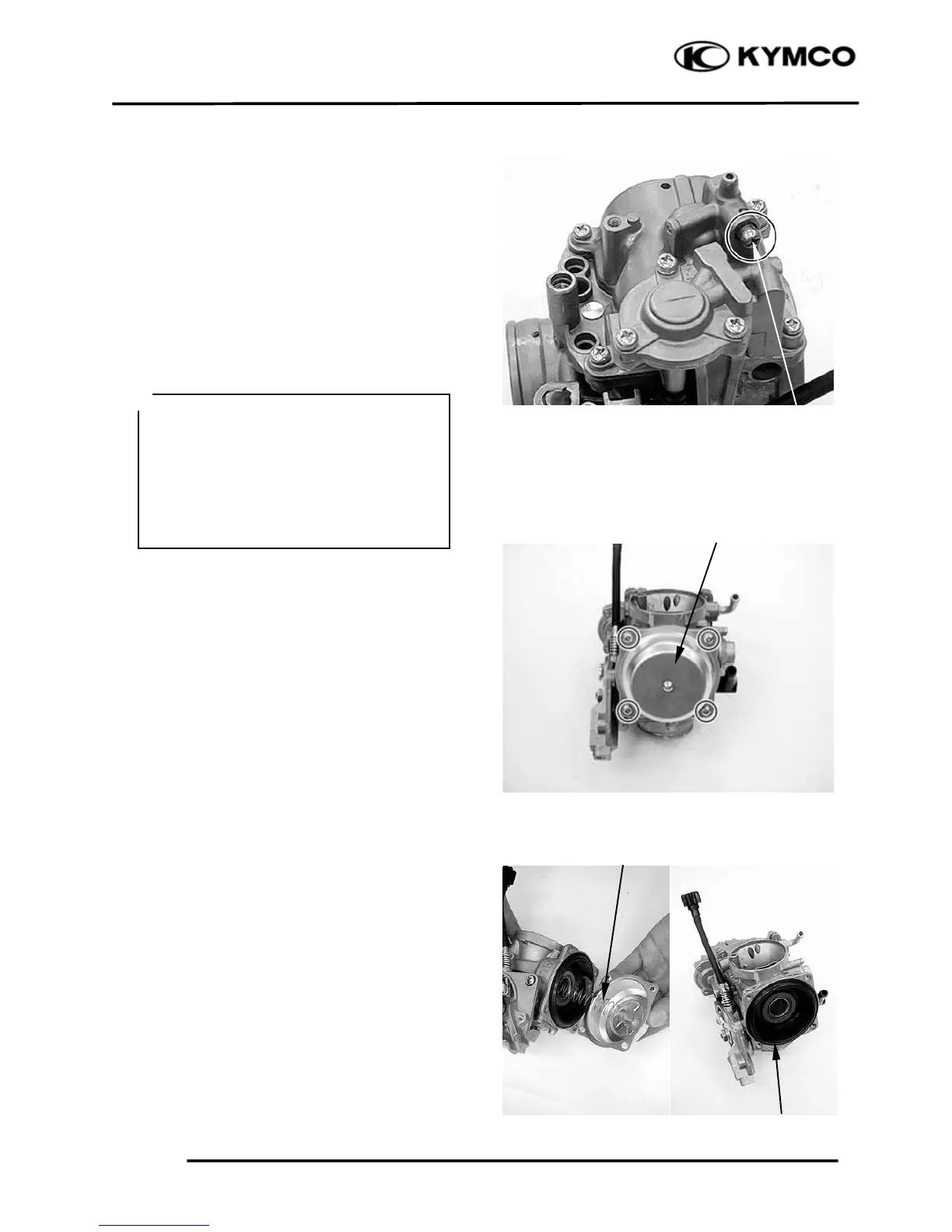

DISASSEMBLY
Remove the carburetor (refer to the
“CARBURETOR REMOVAL/CHOKE
INSPECTION/INSTALLATION” section in
this chapter).
Loosen the drain screw to drain the gasoline
from the float chamber.
Remove the four screws and top cap
.
Remove the spring and piston valve.
Fuel Drain Plu
Spring
Top Cap
Piston Valve
xKeep sparks and flames away from the
work area.
xDrain gasoline into a clean container.
x Do not loosen or tighten the painted
bolts and screws of the carburetor.
Loosening or tightening them can
cause throttle and piston valve
synchronization failure.
＊
To Next Page
