5. FUEL SYSTEM
5-10
MXU 500

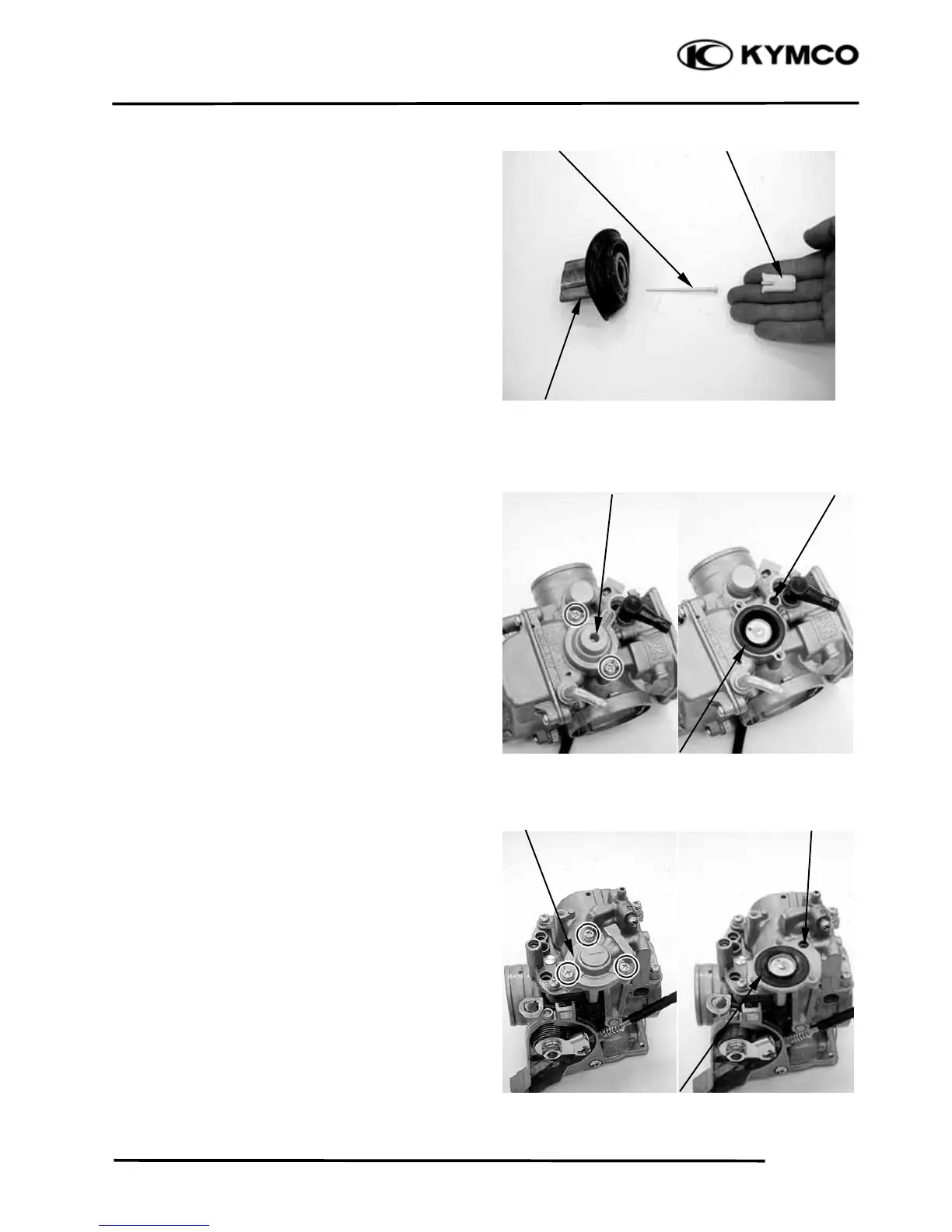

Remove the spring retainer, jet needle.
Remove the two screws and casting enrichment
valve cover and then take out the spring.
Remove the casting enrichment valve and O-
ring.
Remove the three screws and accelerating
pump cover and then take out the spring.
Remove the accelerating pump and O-ring.
Casting Enrichment Valve Cover/Spring
Jet Needle Spring Retaine
r
Piston Valve
O-ring
Casting Enrichment Valve
Accelerating Pump Cover
/
Spring O-ring
Accelerating Pump Diaphrag
m
