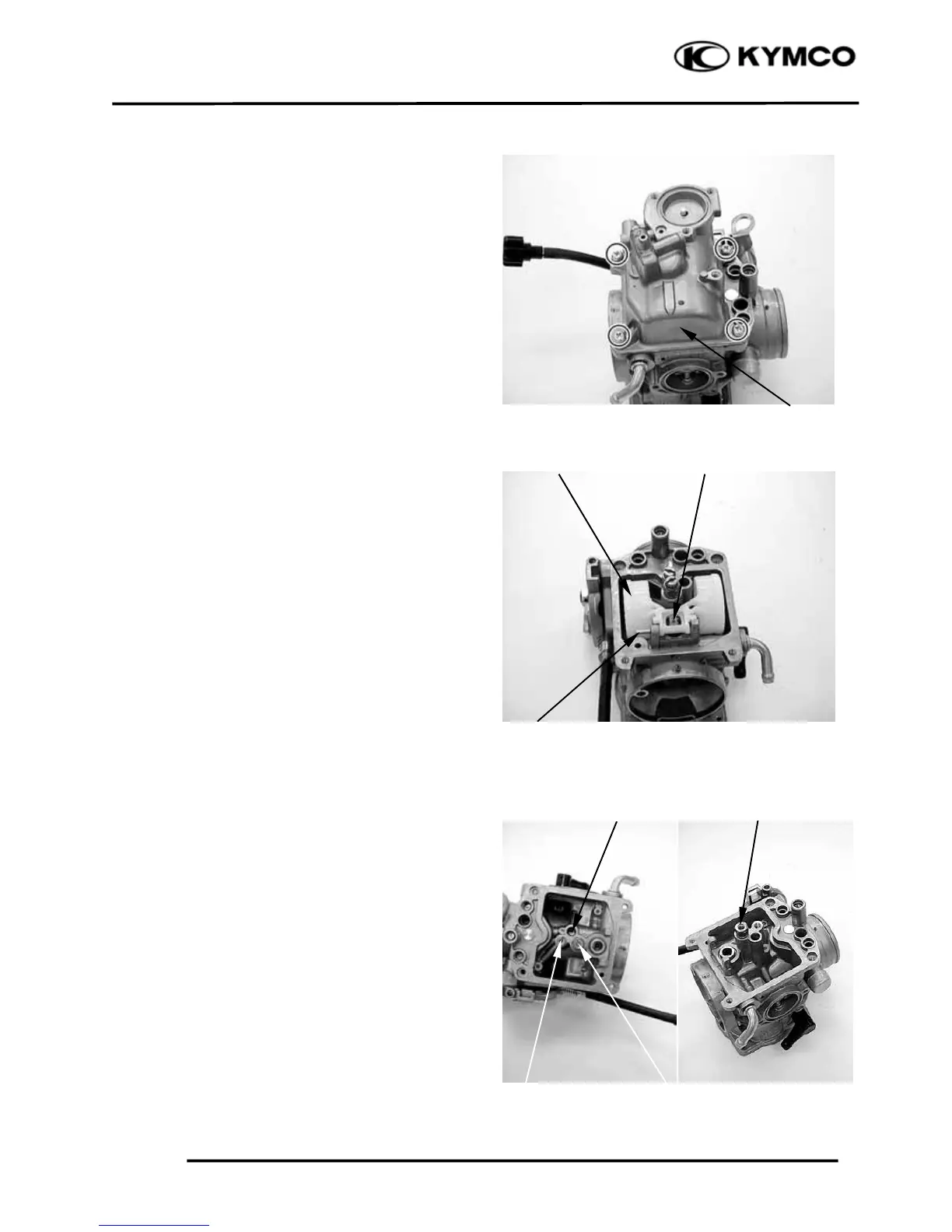

Remove the four screws and float chamber.
Pull float pin outs, then remove the float and
float valve.
Remove the slow jet.
Remove choke jet.
Remove main jet.
Remove the needle jet holder.
Float Float Valve
Float Chambe
r
Float Valve
Choke Je
t
Slow Jet Needle Jet Holde
r
Main Je
t
