14. FRONT WHEEL/FRONT SUSPENSION
STEERING SYSTEM
14-25
MXU 500
INSTALLATION

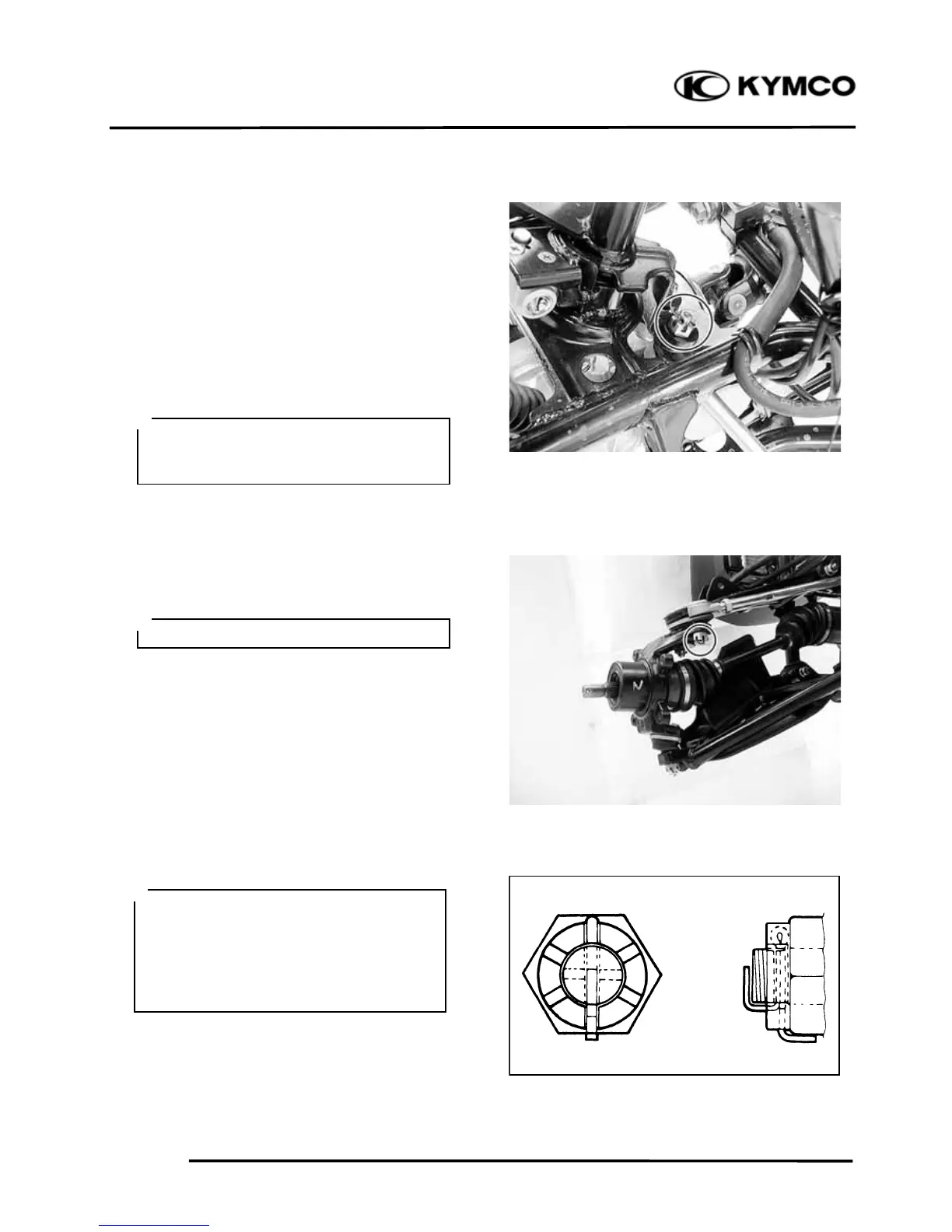

Install the tie-rod and onto the steering
knuckle and steering column, then tighten
the nuts.
Torque:
Steering knuckle side:
2.1 kgf-m (21 N-m, 16 lbf-ft)
Steering column side:
2.1 kgf-m (21 N-m, 16 lbf-ft)
Install the all cotter pins and band ends of
cotter pins.
Be sure that the rod-end on the
indentation surface side is connected to
the steering knuckle.
＊
Ɣ Do not apply oil to the seat of the nuts.
Ɣ Do not loosen the nuts after torque
tightening. If the nuts groove is not
aligned with the cotter pins hole, align
groove with the hole by tightening up
on the nuts.
＊
Always use a new cotter pin.
＊
