5. FUEL SYSTEM
5-6
MXU 500

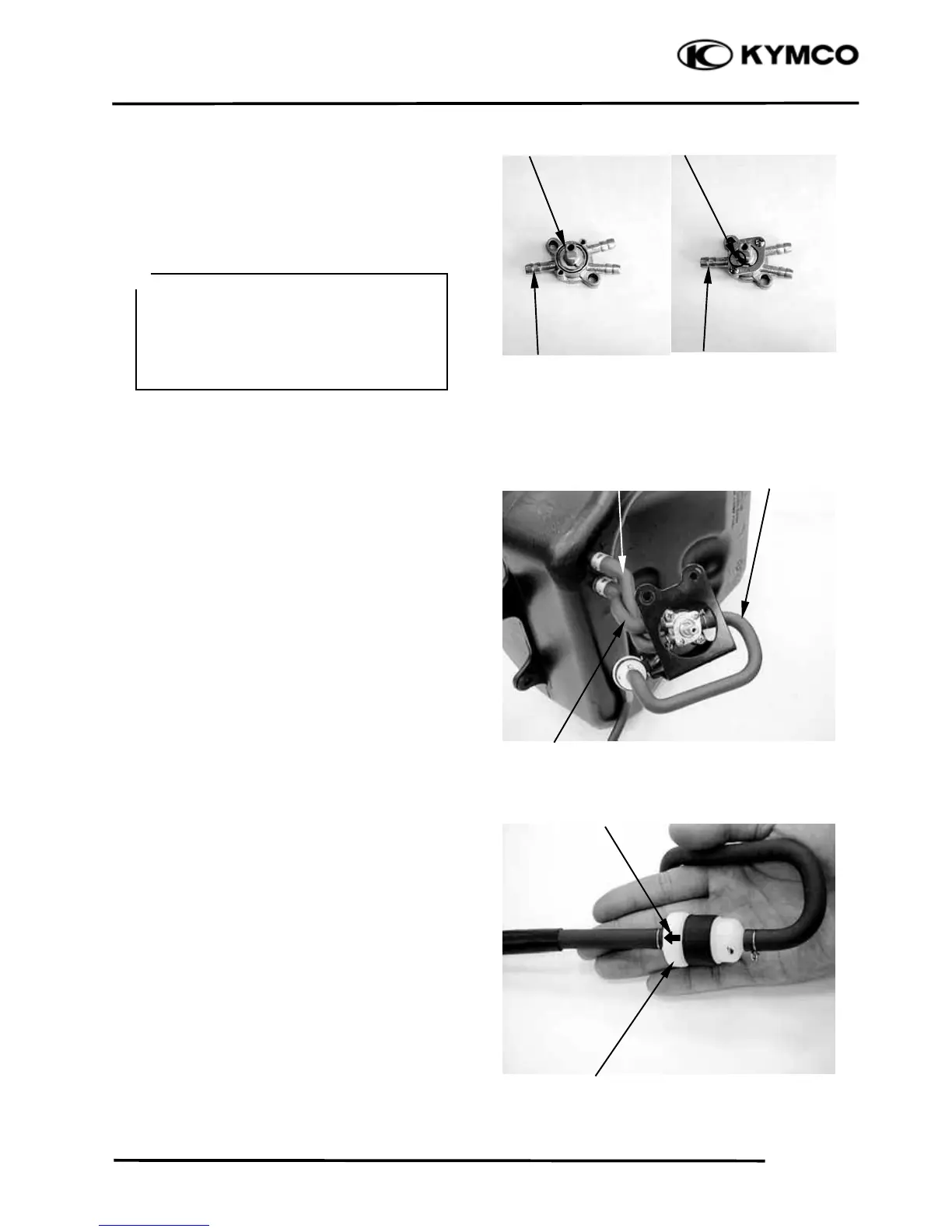

ASSEMBLY
Reverse the “DISASSEMBLY” procedures.
Install rubber gasket, control shaft, washer
and retaining ring.
INSTALLATION
Reverse the “REMOVEAL” procedures.
Connect all fuel tube.
Install the fuel filter with the arrow mark
facing forward.
xAligning the tab on the control shaft
with the outlet duct in the fuel valve
body.
xAligning the tab on the retaining ring
with the outlet duct in the fuel valve
body.
＊
Reserve Fuel Tube
Main Fuel Tube
Outlet Fuel Tube
Tab
Outlet Duc
t
Outlet Duc
t
Tab
Arrow Mark
Fuel Filte
r
