10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
10-8
MXU 500
Install the drive pulley assembly.
Install the washer and nut.
Use the special tool to hold drive pulley,
then tighten the nut to the specified torque.
Torque: 14 kgf-m (140 N-m, 100.8 lbf-ft)
Apply oil to the threads
Special tool:
Drive pulley holder A120E00058
Make sure the “OUT SIDE” marks on
the washer faces the left crankcase cover.
＊

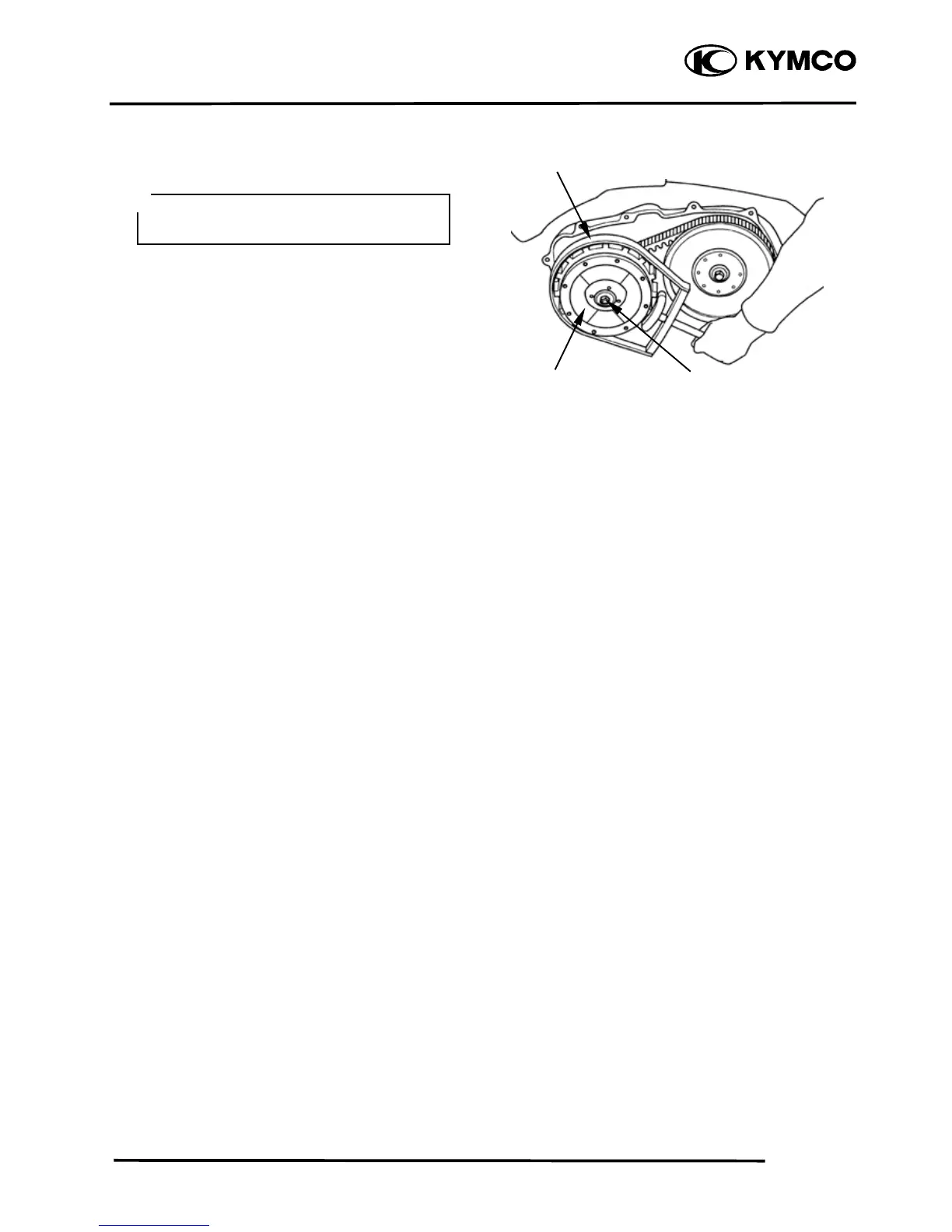

Drive Pulley Nut/Washer
Drive Pulley Holde
