10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
10-7
MXU 500

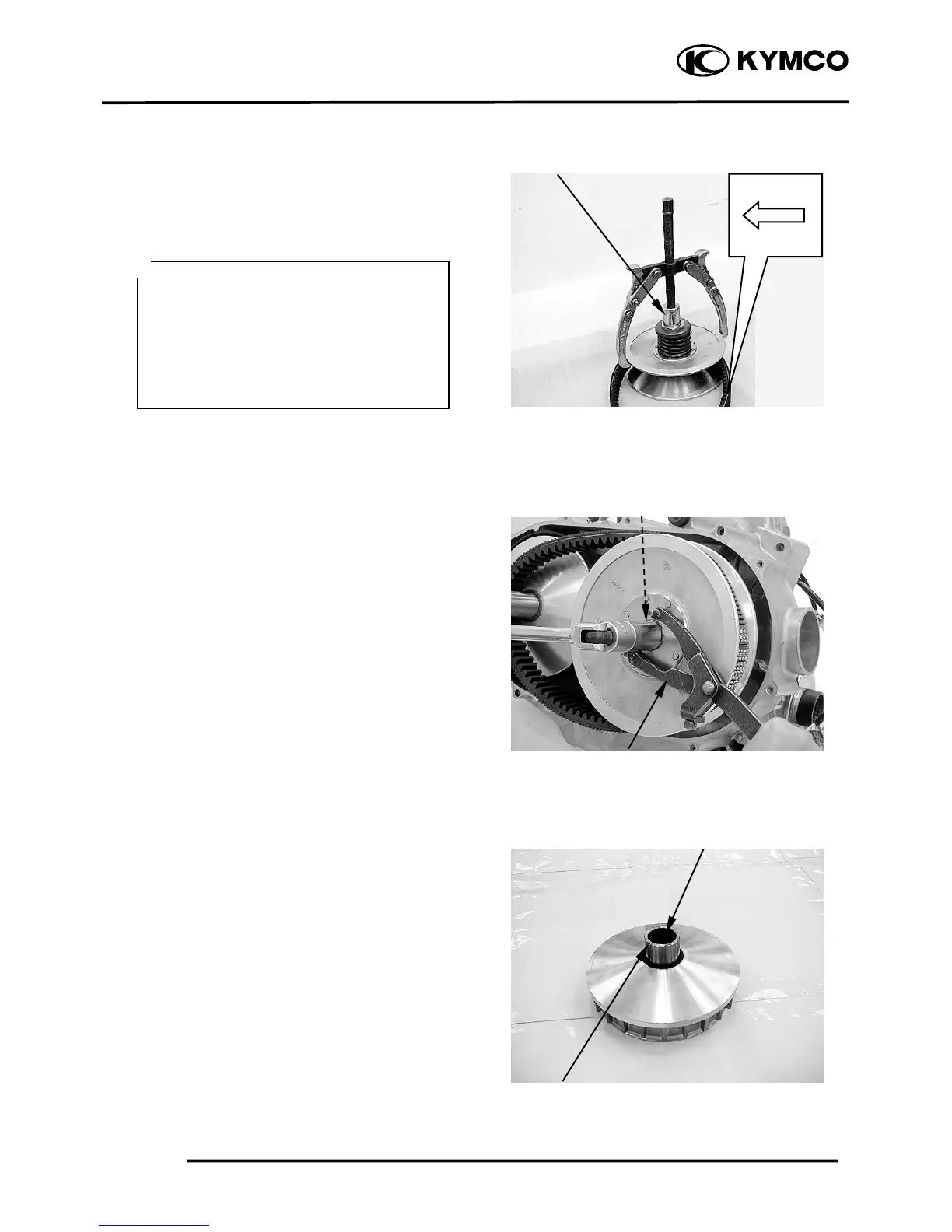

Place a block on the plate nut.
Compress the spring by using a
commercially available puller, install the
drive belt.
Install the driven pulley assembly and drive
V-belt.
Use the special tool to hold driven pulley,
then tighten the nut to the specified torque.
Torque: 10 kgf-m (100 N-m, 72 lbf-ft)
Apply oil to the threads
Special tools:
Y-type holder A120E00056
Apply lubricant to the drive face boss inner
surface, then install the drive pulley.
Ɣ The drive belt should be installed so
that the arrows on the drive belt
periphery point in the normal turning
direction.
Ɣ The drive belt contact surface of the
driven face should be thoroughly
cleaned.
＊
Drive Face Boss
Apply lubrican
To Next Page
