10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
10-6
MXU 500

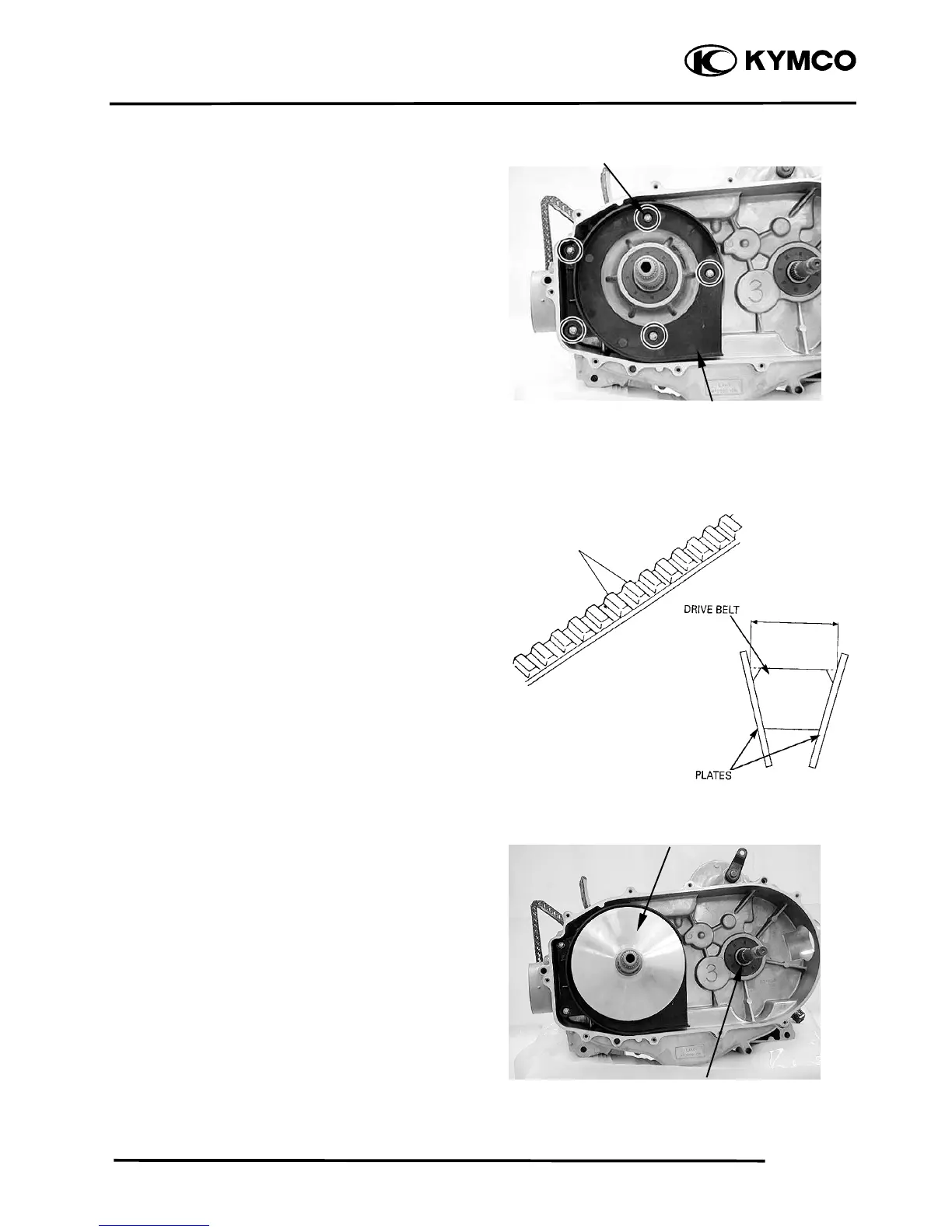

Remove the five bolts and then remove the
fan guide.
INSPECTION
Inspect the drive belt for cracks, scaling,
chipping or excessive wear.
Measure the V-belt width
Service limit (A): 30.8 mm (1.232 in)
Replace the drive belt if out of specification.
INSTALLATION
Install the fan guide.
Install the drive pulley face.
Install the driven pulley washer.
Fan Guide
Bolts
Washe
To Next Page
