3. INSPECTION/ADJUSTMENT
3-16
MXU 500

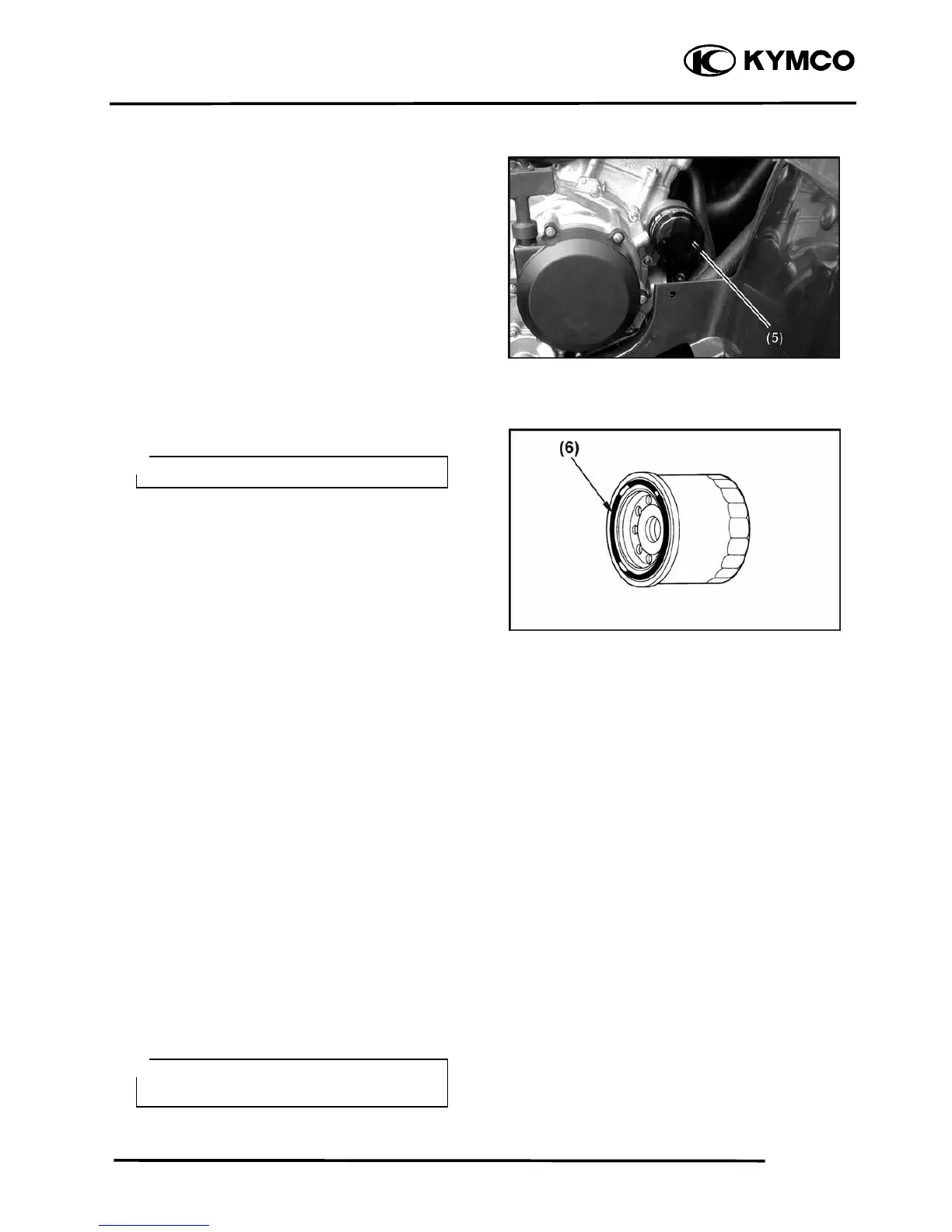

7. Remove the oil filter cartridge (5) with an
oil cartridge wrench.
Special tool:
Oil cartridge wrench A120E00061
8. Apply a light coat of clean engine oil to
the O-ring (6) of the new oil filter
cartridge.
9. Install the new oil filter cartridge with an
oil cartridge wrench, and then tighten it
to the specified torque.
Torque: 1 kgf-m (10 N-m, 7.2 lbf-ft)
10. Install right side cover.
11. Reinstall the drain plug and tighten the
drain plug to the specified torque.
Torque: 2.5 kgf-m (25 N-m, 18 lbf-ft)
12. Add the specified amount of
recommended engine oil, and then
install the engine oil filler cap and
tighten it.
Engine oil capacity
At disassembly:
3.6 liter (3.17 lmp qt, 3.82 Us qt)
At change:
3 liter (2.64 lmp qt, 3.18 Us qt)
After draining and oil filter cartridge
change:
3.2 liter (2.82 lmp qt, 3.39 Us qt)
Make sure the O-ring is seated properly.
＊
Be sure no foreign material enters the
crankcase.
＊
To Next Page
