3. INSPECTION/ADJUSTMENT
3-33
MXU 500

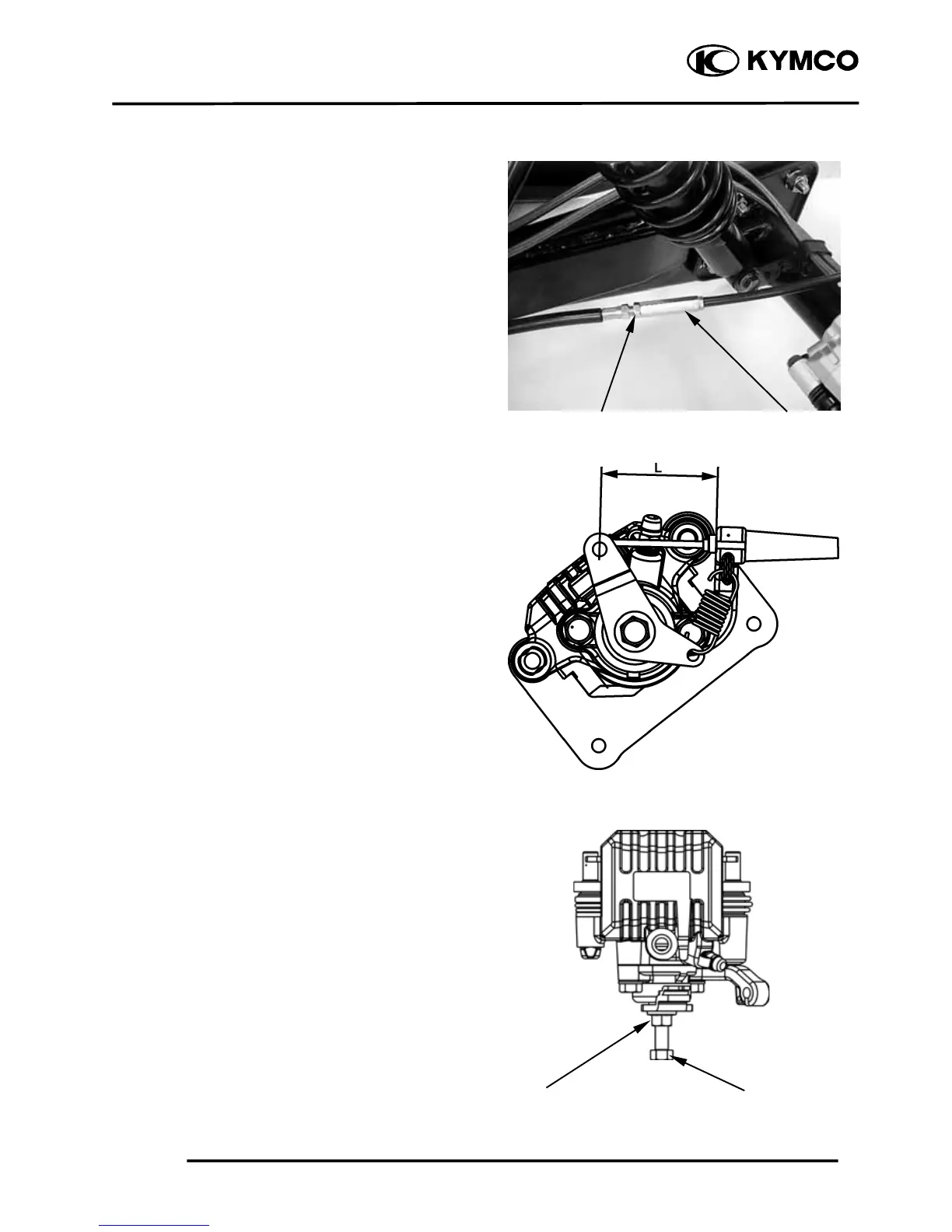

3. Loosen the lock nut and adjuster on the
cable.
4. Turn the adjuster in or out until the
specified brake cable end length “L” is
obtained.
Tighten the lock nut.
Parking brake cable end length:
L: 53 ± 2 mm (2.12 ± 0.08 in)
5. Slowly turn the adjusting bolt on the
caliper clockwise until resistance is felt,
then turn adjusting bolt 1/8
counterclockwise.
6. Tighten the lock nut to the specified
torque while hold the adjusting bolt.
Torque:
1.6 kgf-m (16 N-m, 11.52 lbf-ft)
Lock Nut Adjuste
