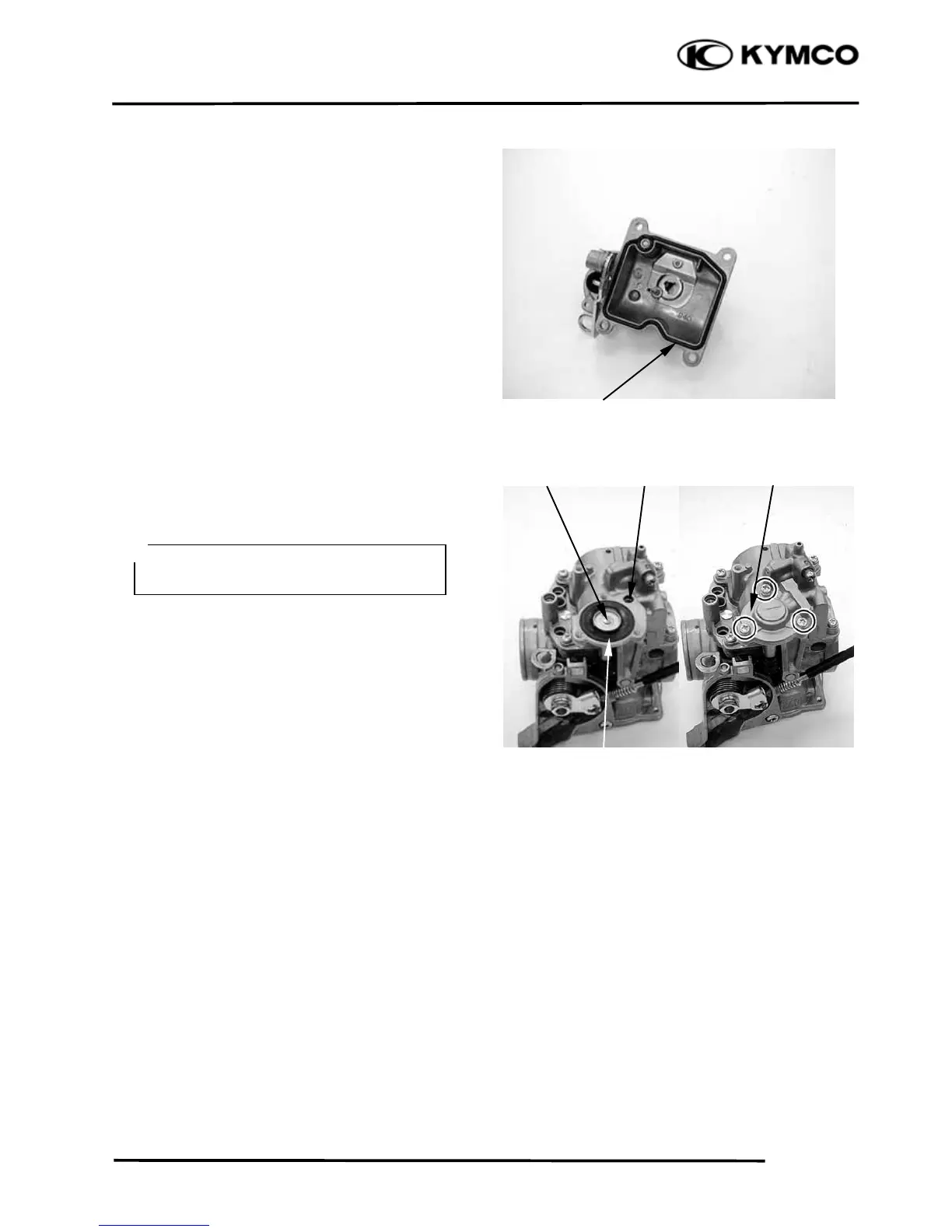

Fit a new O-ring in to the float chamber
groove securely.
Assemble the accelerating pump diaphragm
and new O-ring.
Small Convex O-ring Accelerating Pump Cove
r
Accelerating Pump Diaphrag
m
O-ring
Install the accelerating pump
diaphragm with the small convex facing
up
＊
