6. COOLING SYSTEM
6-13
MXU 500

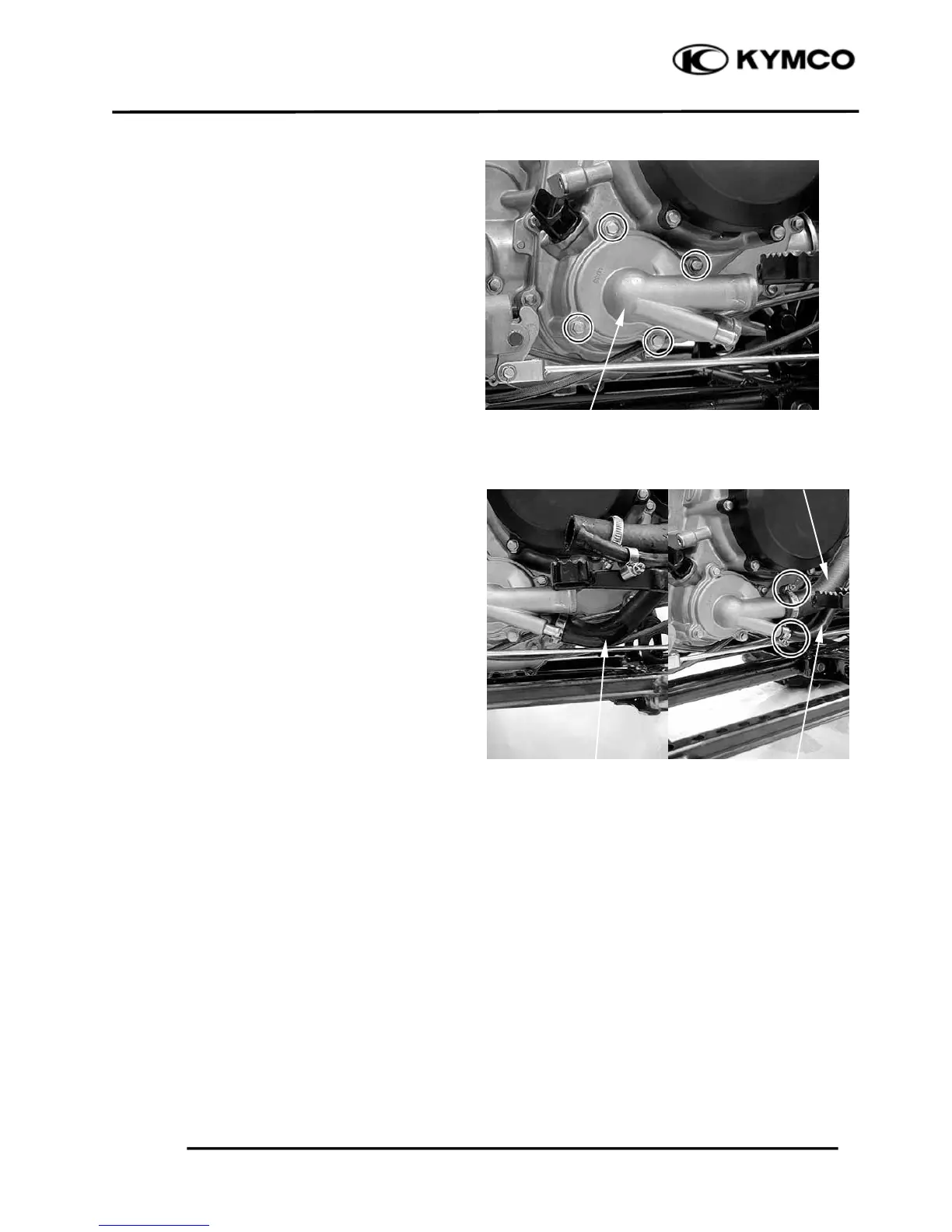

Install the water pump cover and tighten the
bolts to the specified toque.
Torque: 1.3 kgf-m (13 N-m, 9 lbf-ft)
Connect the water hoses and bypass hose,
then tighten the hose bands.
Fill the system with recommended coolant
and bleed the air (refer to the āCOOLANT
REPLACEMENTā section in this
chapter).
Water Pump Cover/O-ring
Water Hose
Water Hose Bypass Hose
To Next Page
