8. CYLINDER HEAD/VALVES
8-13
MXU 500
Apply engine oil to cylinder head bolt (No.
1 – 8) threads.
Install the four bolts (No. 5 – 8).
Install the four bolts/washers (No. 1 – 4).

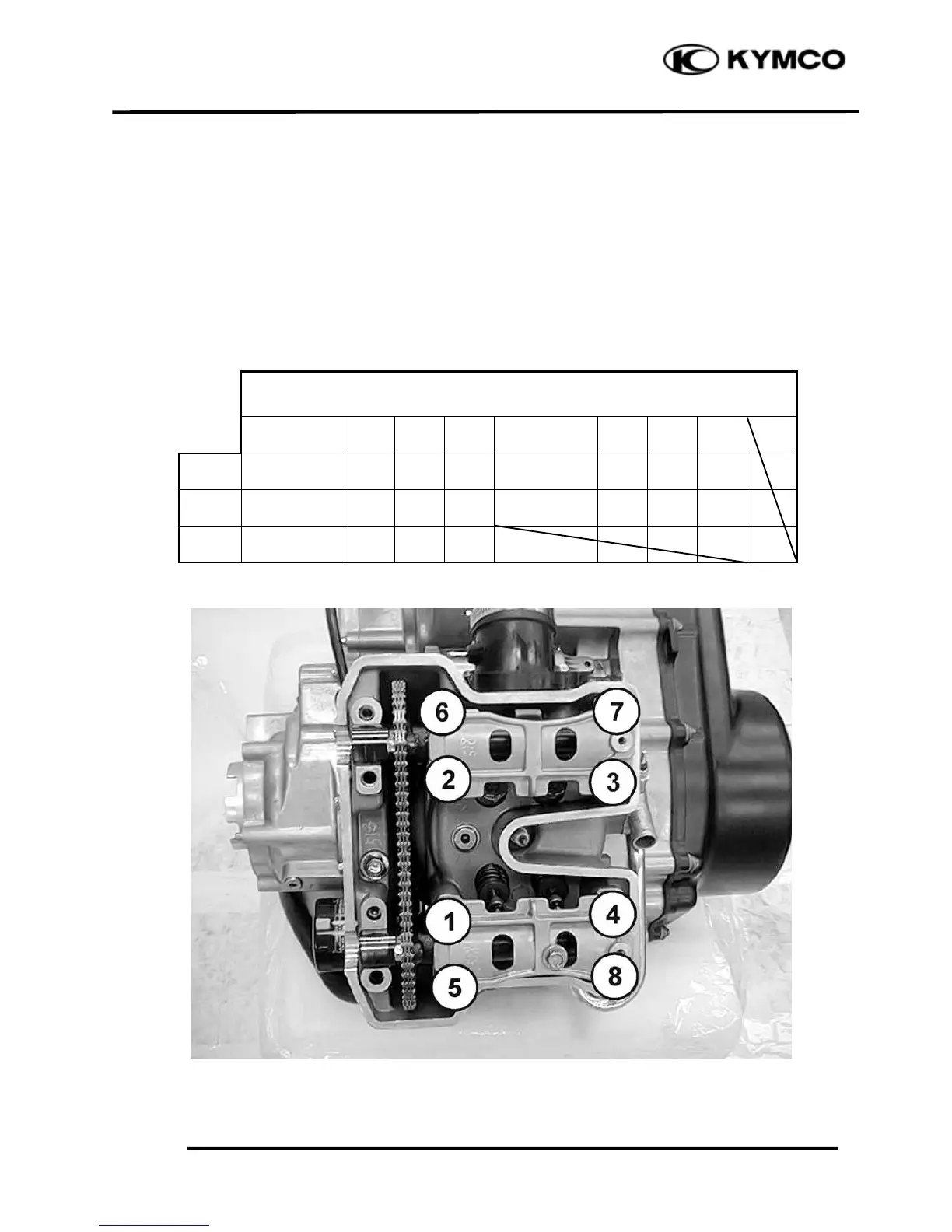

Tighten the holder bolts (No. 1 – 8) in a
crisscross pattern in five steps to the specified
torque as follow diagram.
Tighten the bolts to the specified torque in sequence
kgf-m (N-m, lbf-ft)
(1) (2) (3) (4) (5) (6) (7) (8)
Step 1 2.4 (24, 17) ←←←1.2 (12, 9) ←←←
Step 2 3.8 (38, 27) ←←←2.3 (23, 17) ←←←
Step 3 4.8 (48, 35) ←←←
