8. CYLINDER HEAD/VALVES
8-19
MXU 500
INSTALLATION

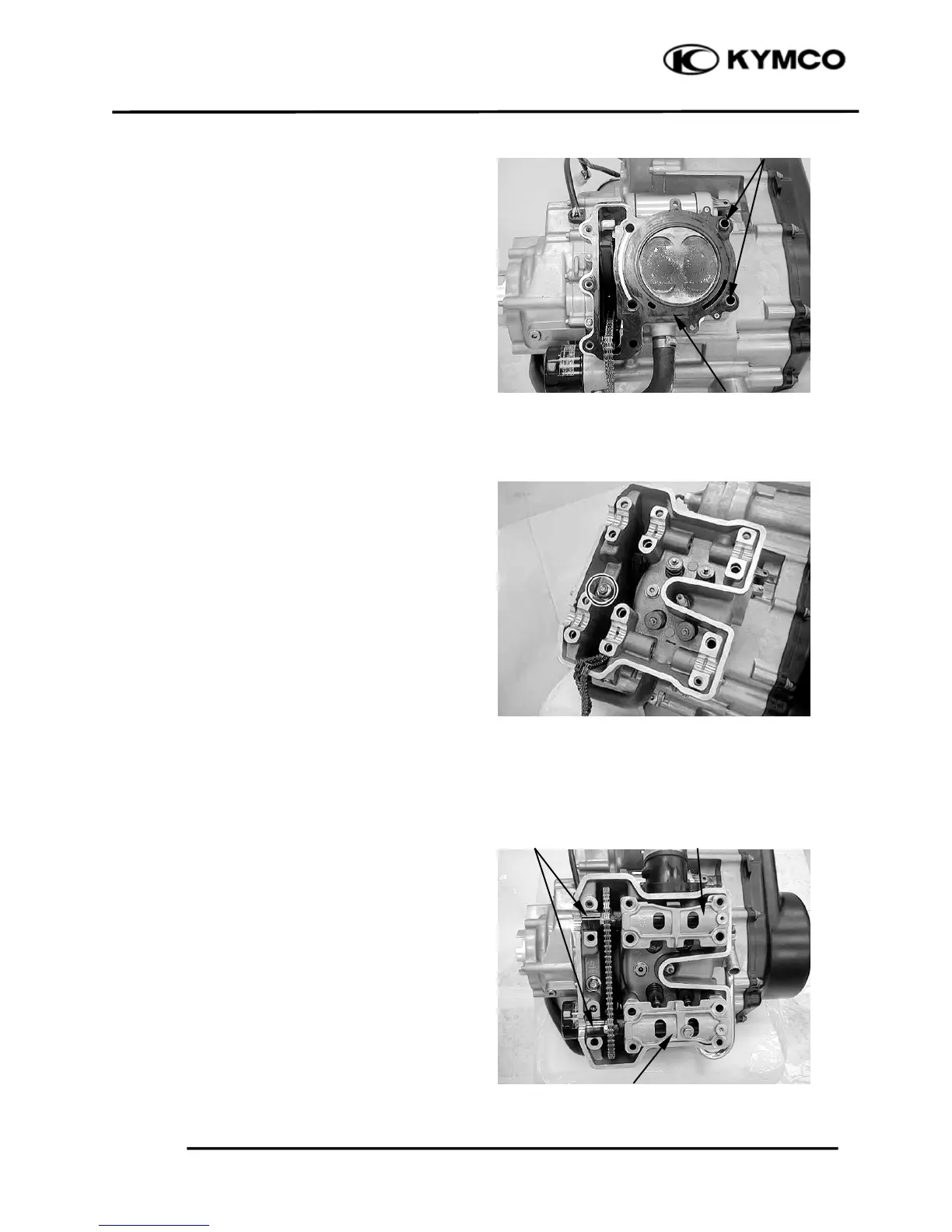

Install the dowel pins and new gasket as
shown.
Install the cylinder head.
Apply engine oil to the cylinder head bolt (9)
threads.
Install the bolt (9) but do not tighten it.
Install the camshafts, intake camshaft holder
and exhaust camshaft holder (refer to the
“CAMSHAFT REMOVAL/INSPECTION/
INSTALLATION” section in this chapter).
Gasket
Dowel Pins
Exhaust Camshaft Holder
Camshafts Intake Camshaft Holde
To Next Page
