10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
10-11
MXU 500

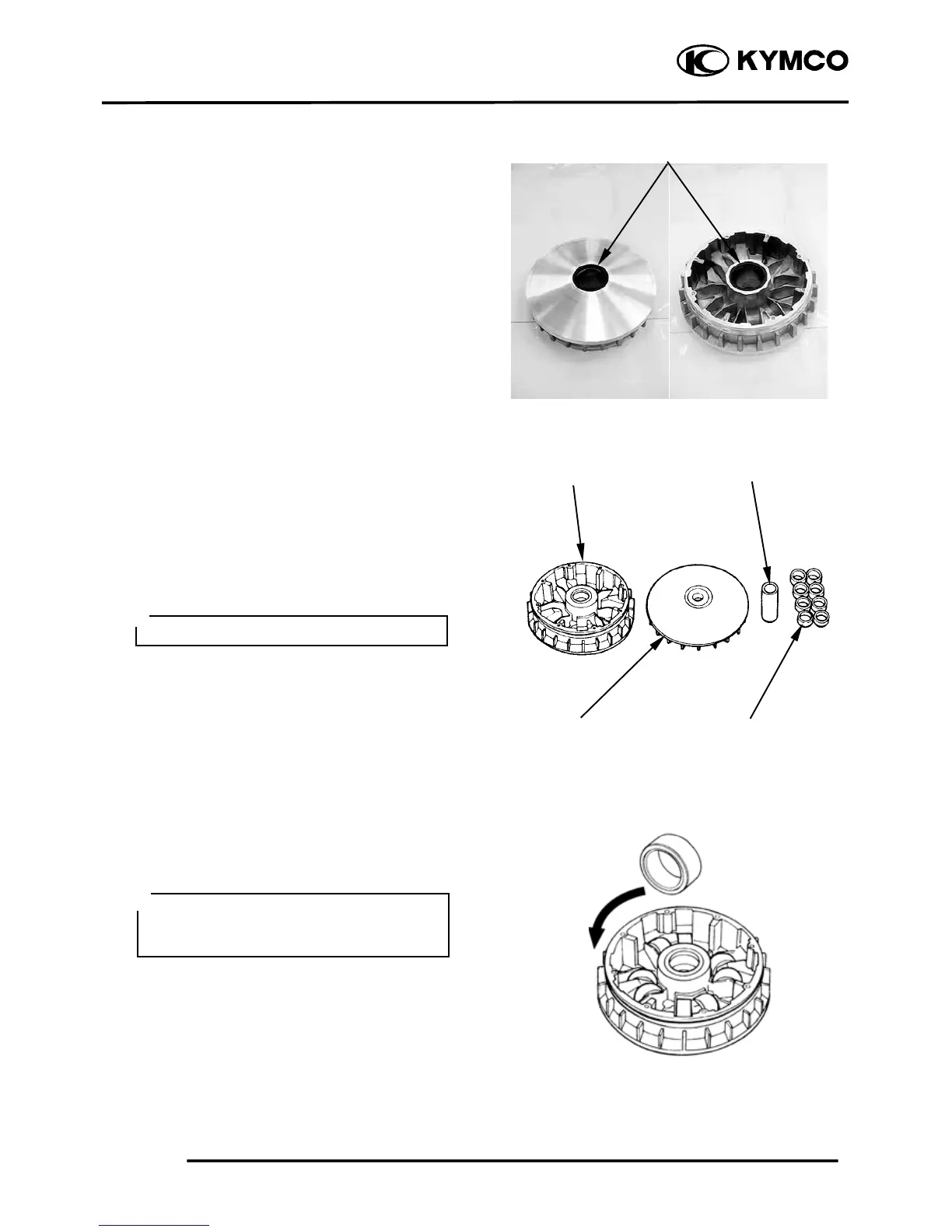

Check the dust seals on the movable drive
face for wear or damage.
ASSEMBLY
Clean the movable drive face, drive pulley
face, weight rollers, slide pieces, ramp plate
and drive face boss.
Install the weight rollers.
Remove any excess grease.
＊
The direction of all weight rollers is the
same. The thin side is towards to
counterclockwise.
＊
Dust Seals
Drive Pulley Face Weight
Movable Drive Face Drive Face Boss
To Next Page
