13. DRIVE TRAIN
13-4
MXU 500

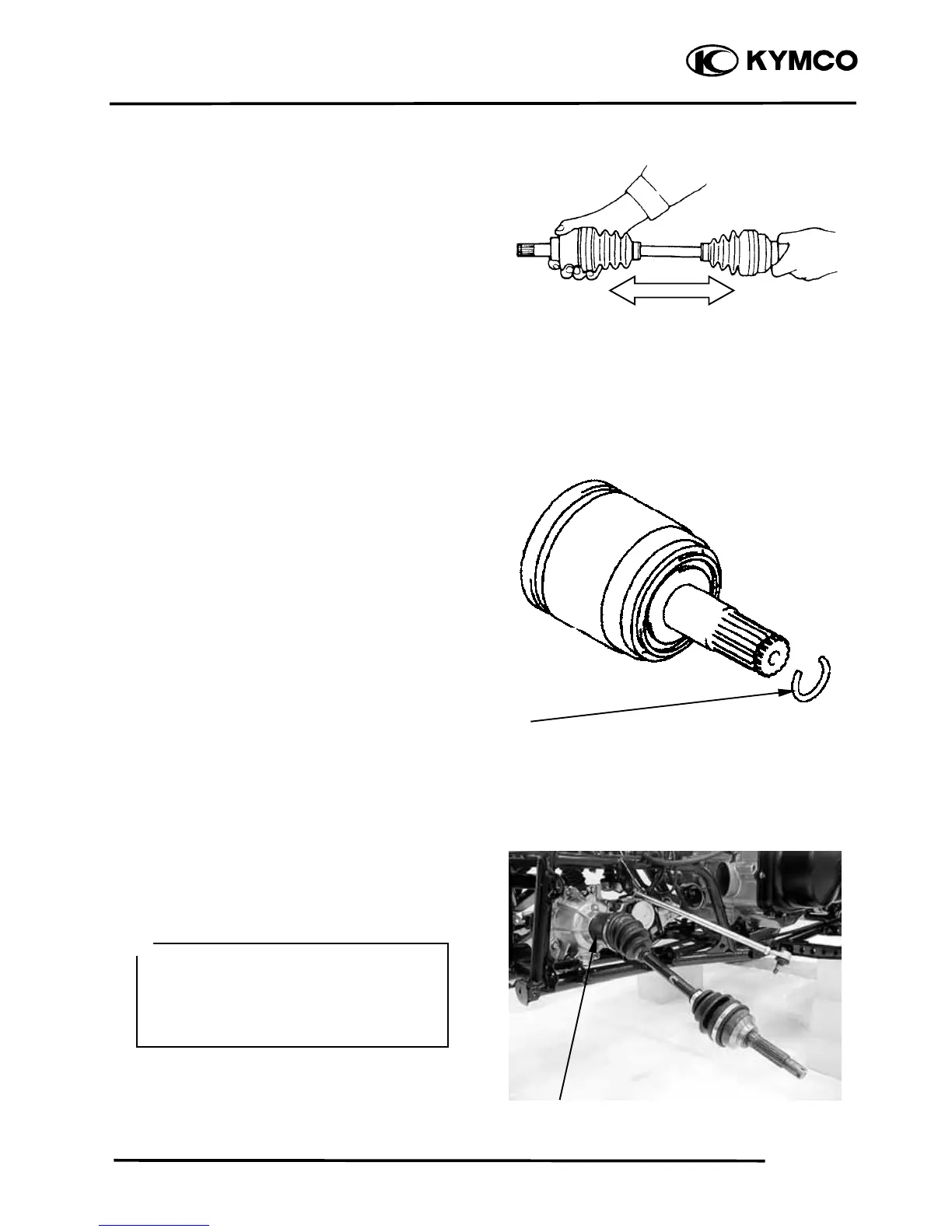

Inspect the free play by using a push-and-
pull motion (thrust movement).
Excessive play ĺ Replace the joint
assembly.
INSTALLATION
Install a new circlip into its groove in the
splines.
Apply lightweight lithium-soap base grease
to the splines of the drive shafts and install
the drive shaft to the front drive gear case.
Case Side Join
Circlip
Ɣ Be careful not to damage the oil seal
in the front drive gear case.
Ɣ After installing drive shaft, check the
circlip is seated properly by pulling
the case side joint lightly.
＊
