13. DRIVE TRAIN
13-19
MXU 500

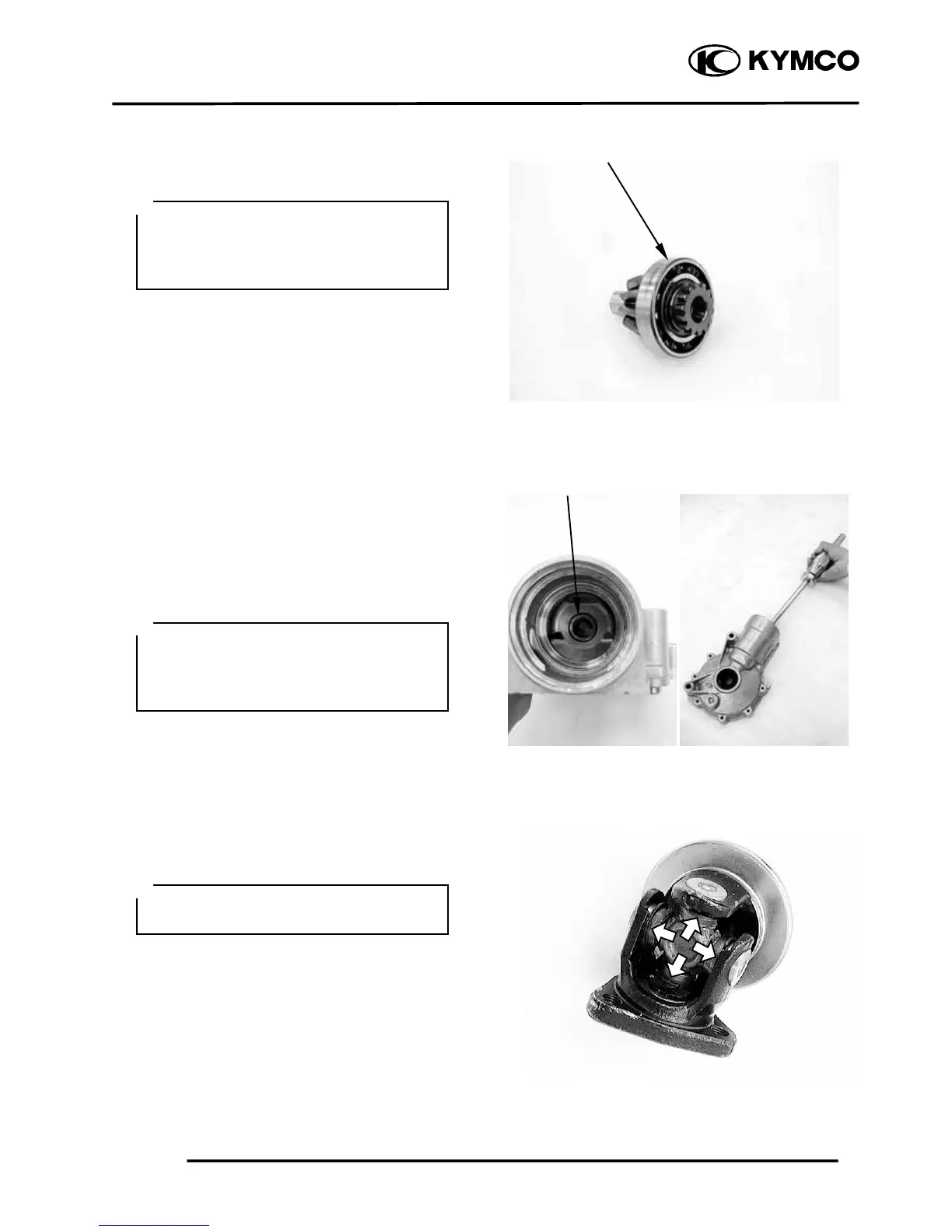

Pull the pinion bearing from the shaft with a
commercially available bearing puller.
Remove the pinion gear pilot bearing by
using the special tools.
Special tool:
Bearing puller A120E00037
Remove the C-rings from the universal joint
by using the special tool.
Special tool:
C-ring remover A120F00022
Bearing
Ɣ If there is no abnormal condition, the
bearing removal is not necessary
Ɣ The removed bearing must be replaced
with a new one.
＊
Bearing
Ɣ If there is no abnormal condition, the
bearing removal is not necessary
Ɣ The removed bearing must be replaced
with a new one.
＊
Replace the removed C-ring with a new
one.
＊
To Next Page
