13. DRIVE TRAIN
13-38
MXU 500

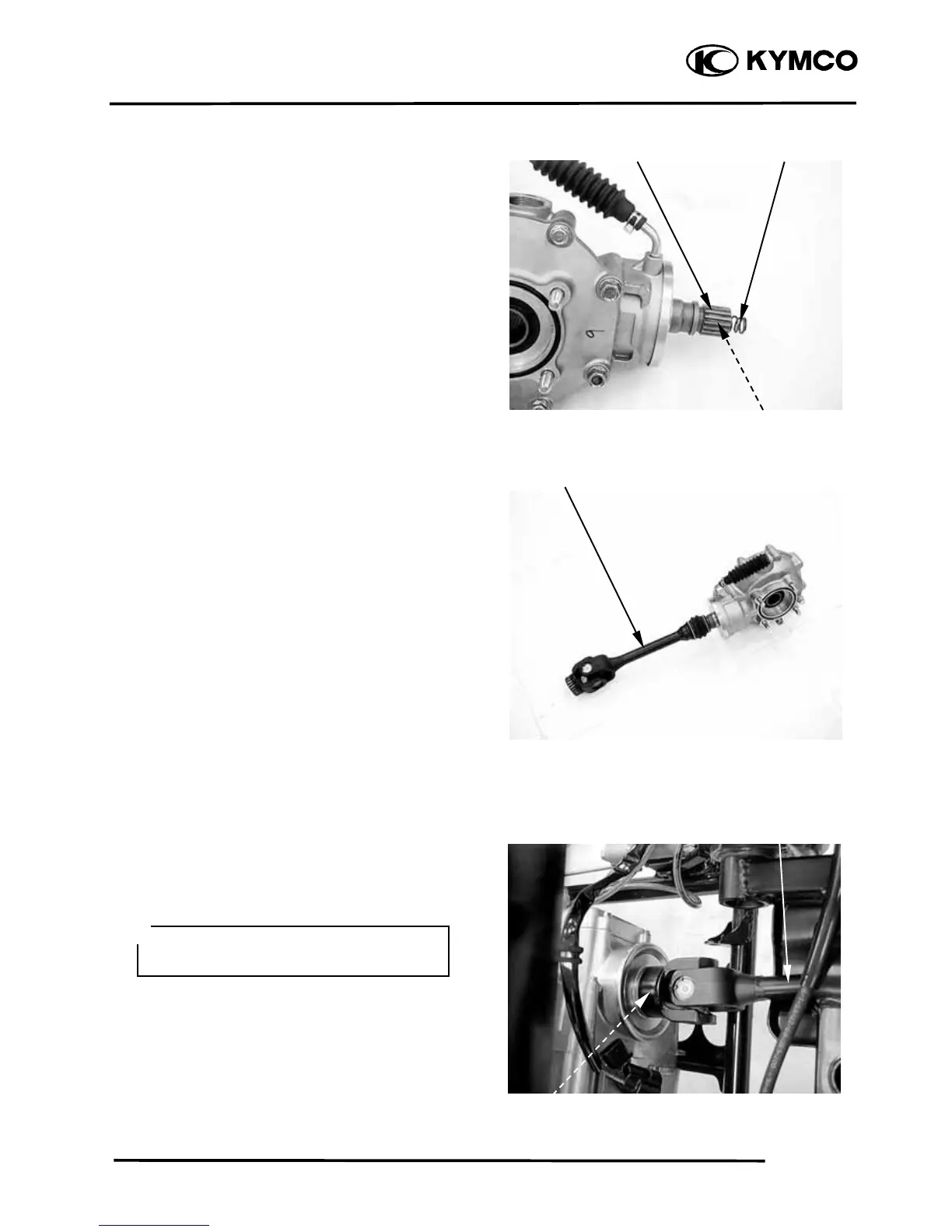

Install the compression spring into the
pinion gear.
Apply lightweight lithium-soap base grease
to the pinion gear splines and inner.
Install the rear propeller shaft to the rear
drive assembly.
Install the rear propeller shaft and rear drive
assembly to the engine and right rear axle
housing.
Apply Grease
Apply Grease Compression Spring
Apply Grease
Rear Propeller Shaf
t
Rear Propeller Shaf
t
Apply lightweight lithium-soap base
grease to the rear output shaft splines.
＊
