14. FRONT WHEEL/FRONT SUSPENSION/
STEERING SYSTEM
14-28
MXU 500

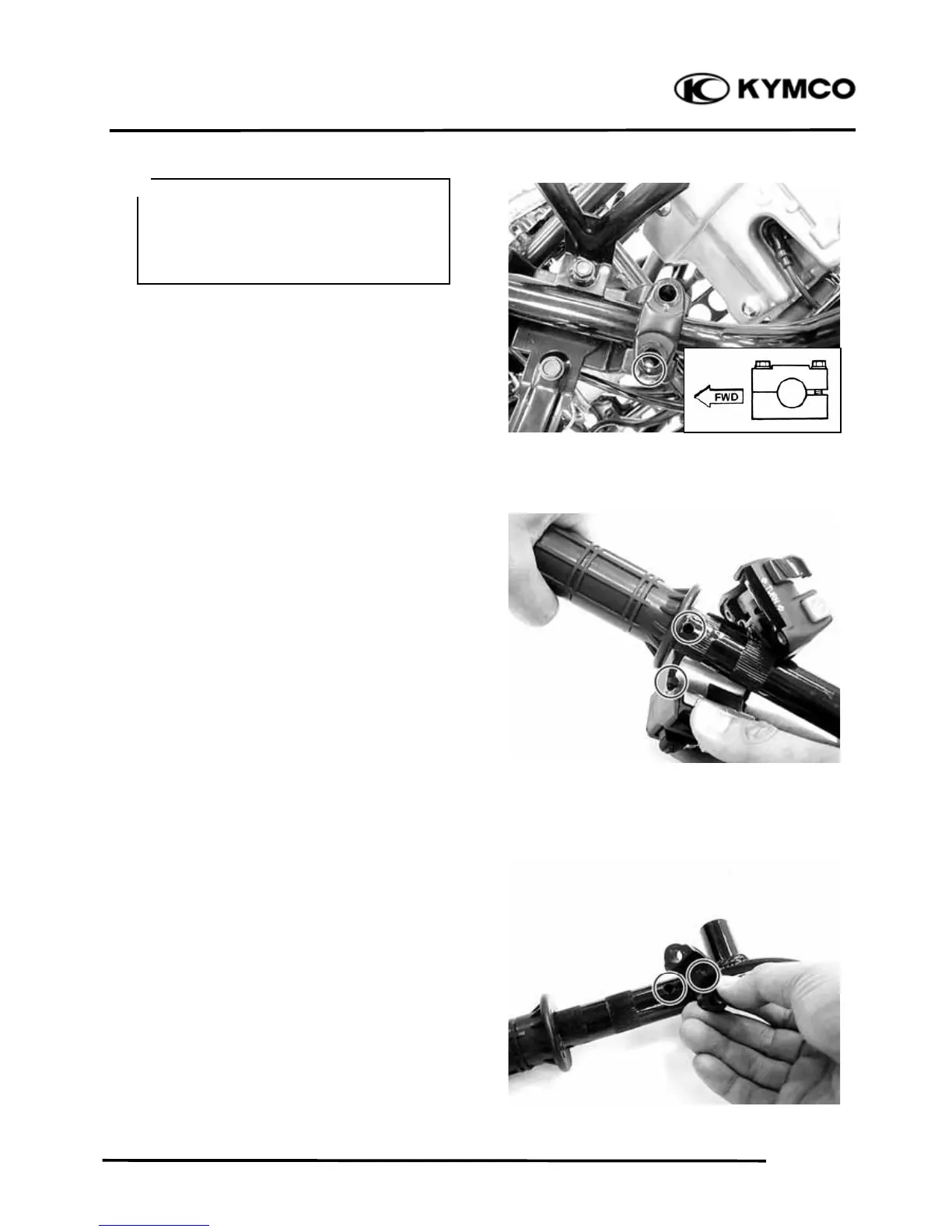

Install the handlebar switch by aligning the
pin on the handlebar switch with the hole in
the handlebar and then tighten the two
screws securely.
Place the right and left brake master
cylinder on the handlebar and install the
master cylinder holder with the “UP” mark
facing up, aligning the punch mark on the
handlebar with the holder joint seam. First
tighten the upper bolt and then tighten the
lower blot.
Torque: 1.2 kgf-m (12 N-m, 8.6 lbf-ft)
xBe sure the handlebar holder mark face
to front.
xFirst tighten the bolts on the front side
of the handlebar holder, and then
tighten the bolts on the rear side.
＊
