15. REAR WHEEL/AXLE/SHOCK
ABSORBER/SWING ARM
15-4
MXU 500

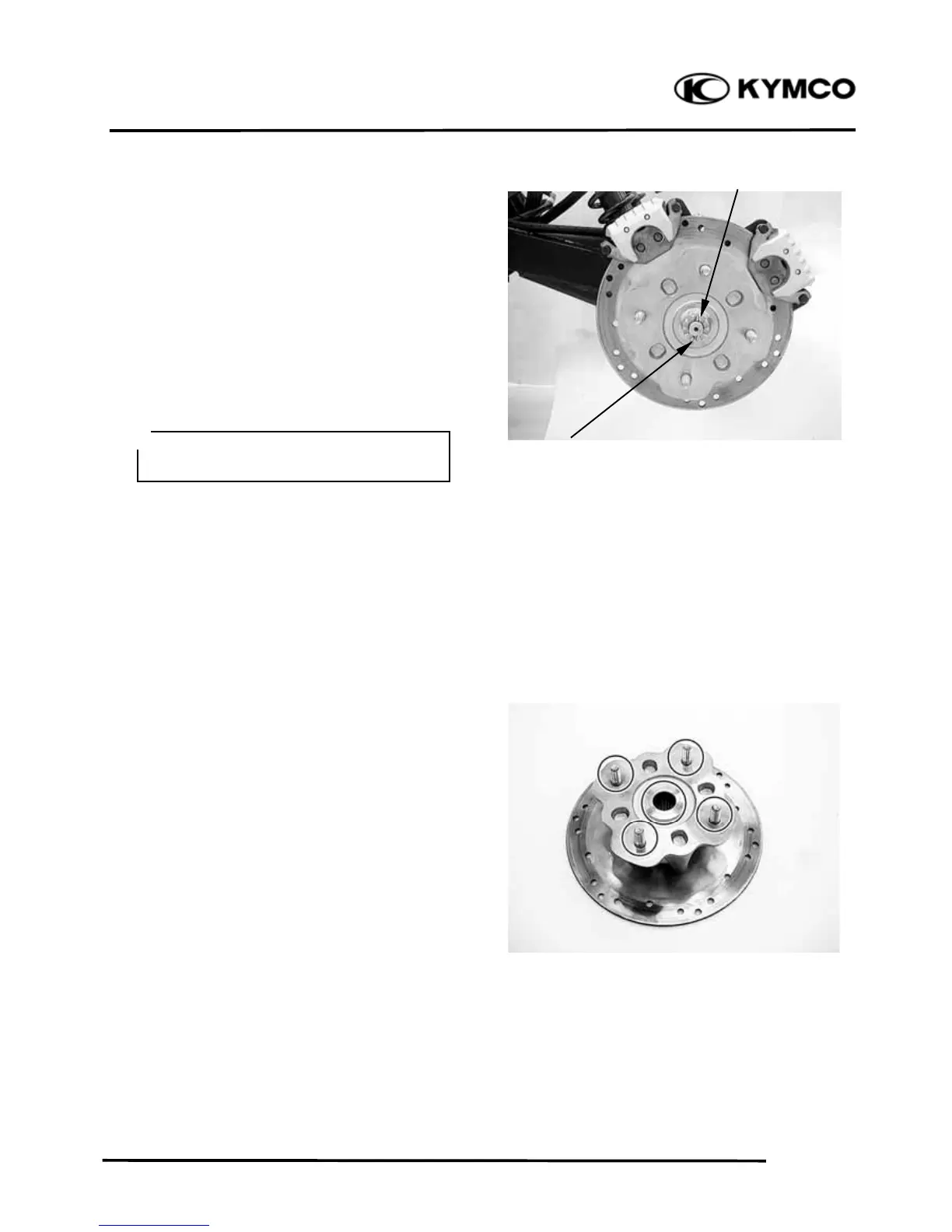

REAR WHEEL HUB
REMOVAL/INSPECTION/
INSTALLATION
REMOVAL
Place the machine on a level place.
Remove the rear wheel (
refer to the “REAR
WHEEL REMOVAL/INSPECTION/
INSTALLATION” section in this chapter)
Elevate the rear wheels by placing a suitable
stand under the frame.
Remove the cotter pin.
Apply the rear brake and then remove nut
and rear wheel hub.
INSPECTION
Check the wheel hub for cracks or deamage.
Check the wheel hub splines for wear or
damage.
Support the machine securely so there is
no danger of it falling over.
＊
Nut/Washe
