16. BRAKE SYSTEM
16-24
MXU 500

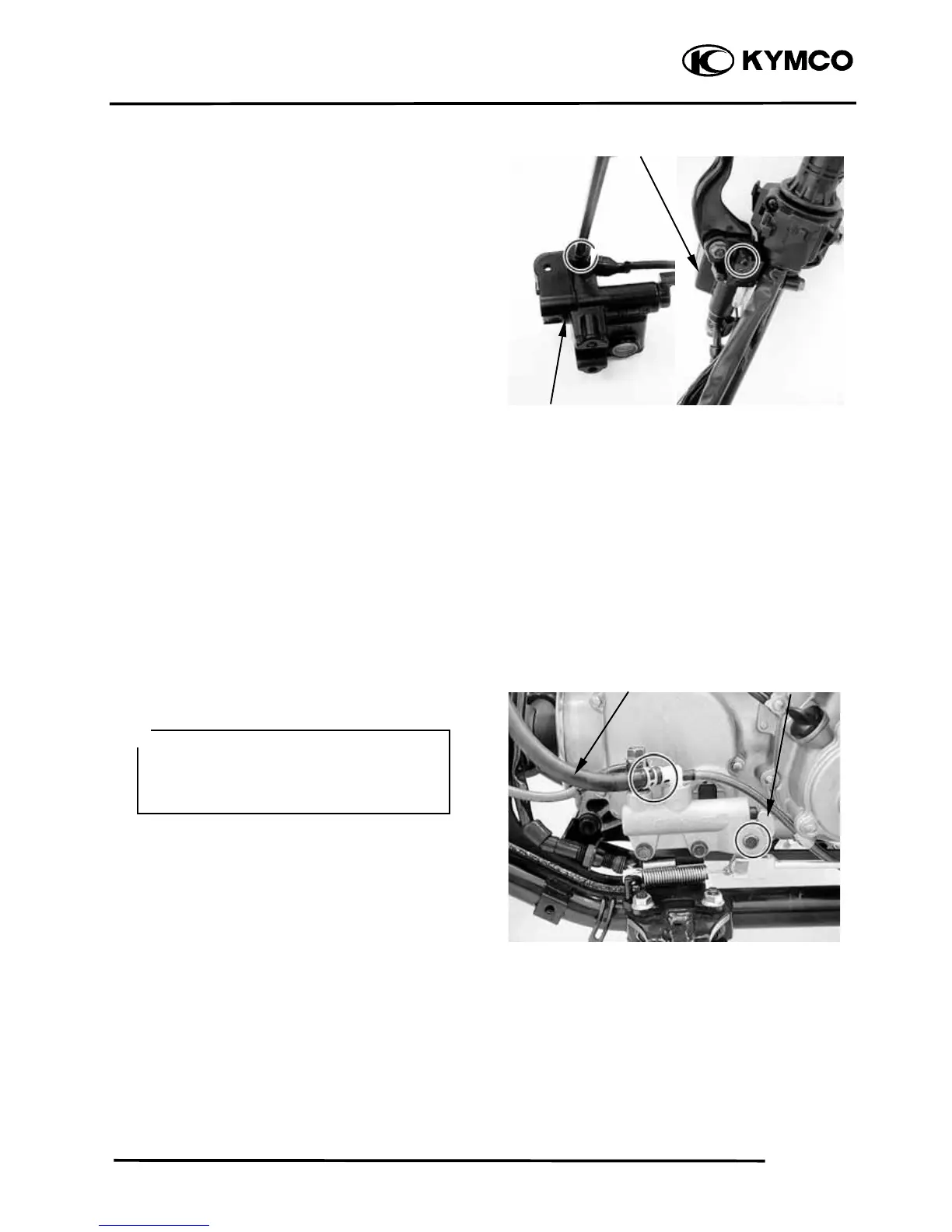

Push the hole under the front brake master
cylinder and then remove the brake light
switch.
Remove the screw and then remove the
brake light switch from the rear brake
master cylinder.
Brake pedal master cylinder
Remove the brake reservoir cap and drain
the brake fluid from the hydraulic brake
system (refer to the “REAR BRAKE
FLUID CHANGE/AIR BLEED” section
or “COMBINATION BRAKE FLUID
CHANGE/AIR BLEED (ON ROAD)”
section in this chapter).
Remove the joint then disconnect the fluid
hose from the master cylinder.
Remove the bolt/nut then remove the brake
arm from the master cylinder.
Front Brake Master Cylinde
Do not splash brake fluid onto any
rubber, plastic and coated parts. When
working with brake fluid, use shop
towels to cover these parts.
＊
