16. BRAKE SYSTEM
16-31
MXU 500

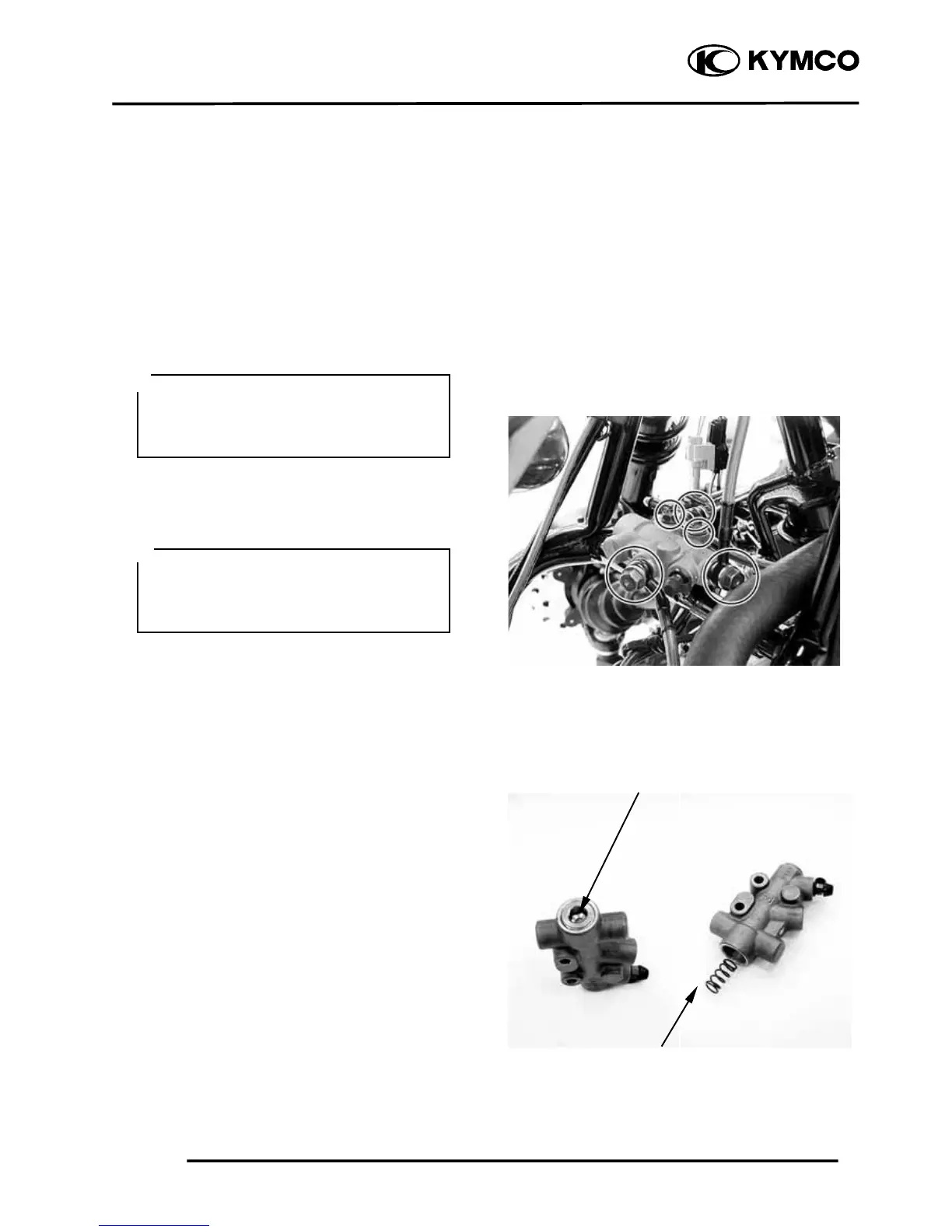

RELAY VALVE
REMOVAL/DISASSEMBLY/INSP
ECTION/ASSEMBLY/
INSTALLATION (ON ROAD)
REMOVAL
Drain brake fluid (refer to the
“COMBINATION BRAKE FLUID
CHANGE/AIR BLEED (ON ROAD)”
section in this chapter).
Remove all fluid hoses bolts/washers and
then disconnect the all fluid hoses.
Remove the two mounting bolts and remove
the relay valve.
DISASSEMBLY
Remove the bolt.
Remove the spring.
Do not splash brake fluid onto any
rubber, plastic and coated parts. When
working with brake fluid, use shop
towels to cover these parts.
＊
When removing the brake fluid hose
bolt, be sure to place towels under the
hose and plug the hose end to avoid
brake fluid leakage and contamination.
＊
Spring
Bol
