16. BRAKE SYSTEM
16-41
MXU 500

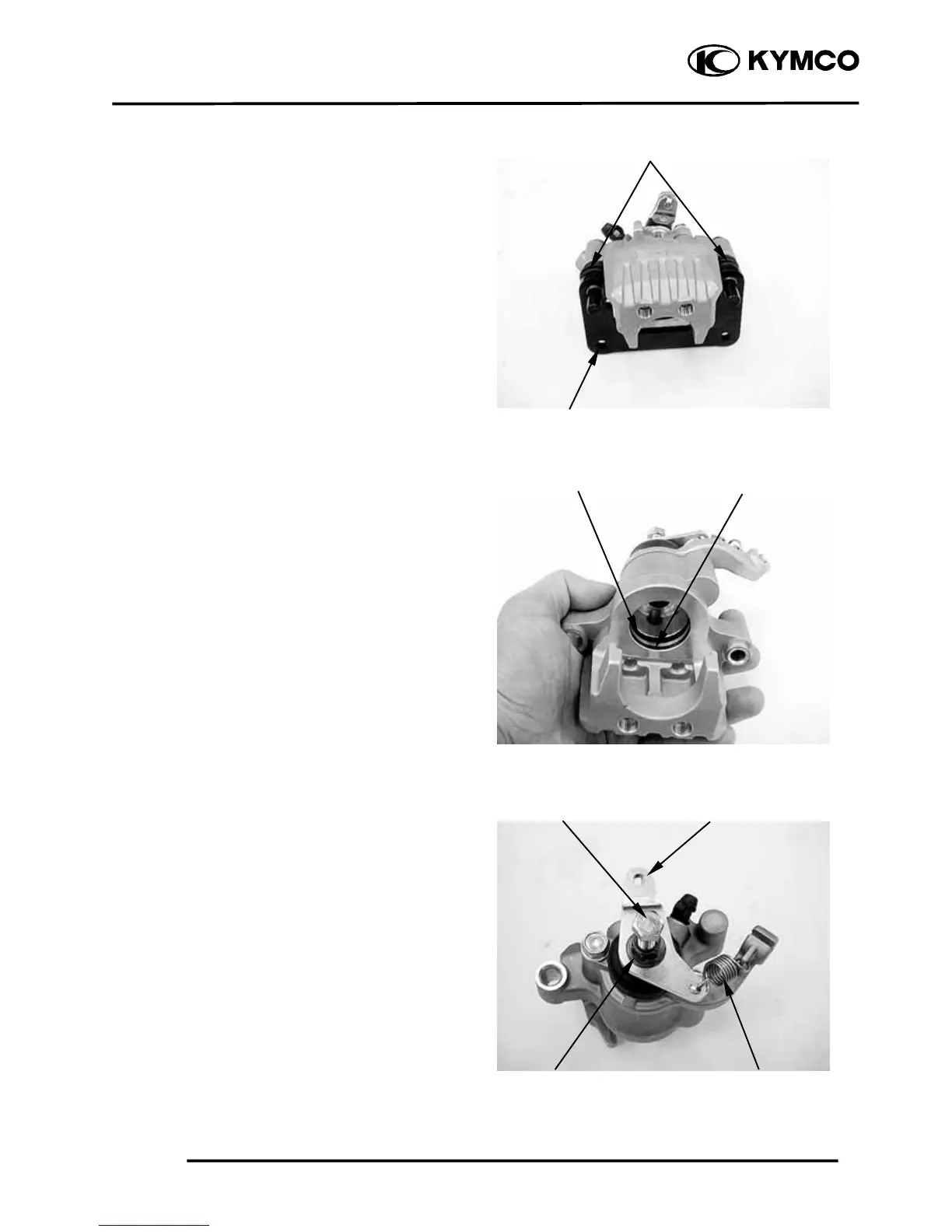

Inspect the dust boots for deterioration or
damage.
If any damages are found, replace them with
a new ones.
Remove the caliper bracket.
Remove the dust boot.
Remove the dust seal and piston seal.
Loosen the lock nut while hold the adjusting
bolt.
Remove the adjusting bolt.
Remove the parking brake arm and spring.
Caliper Bracke
t
Dust Boo
t
Lock Nut Spring
Adjusting Bolt Parking Brake Ar
m
Dust Seal Piston Seal
