19. STARTER SYSTEM
19-22
MXU 500

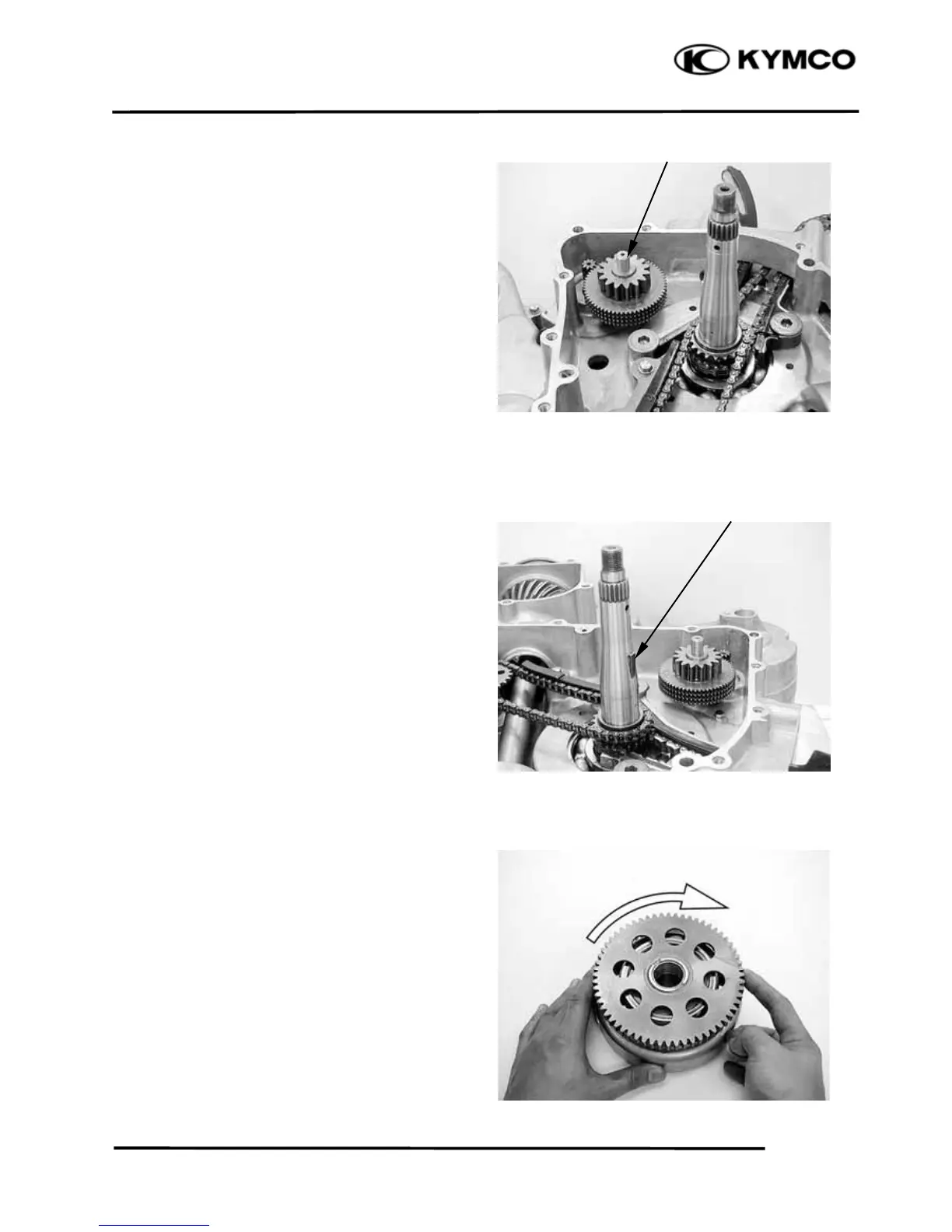

INSTALLATION
Apply oil to the starter reduction gear.
Install the starter reduction gear to the right
crankcase.
Install the woodruff key in the crankshaft key
groove.
Apply molybdenum oil solution to the starter
driven gear bushing.
Install the starter driven gear by turning the
driven gear clockwise.
Reduction Gea
r
Woodruff Key
