Chapter 2: Applications

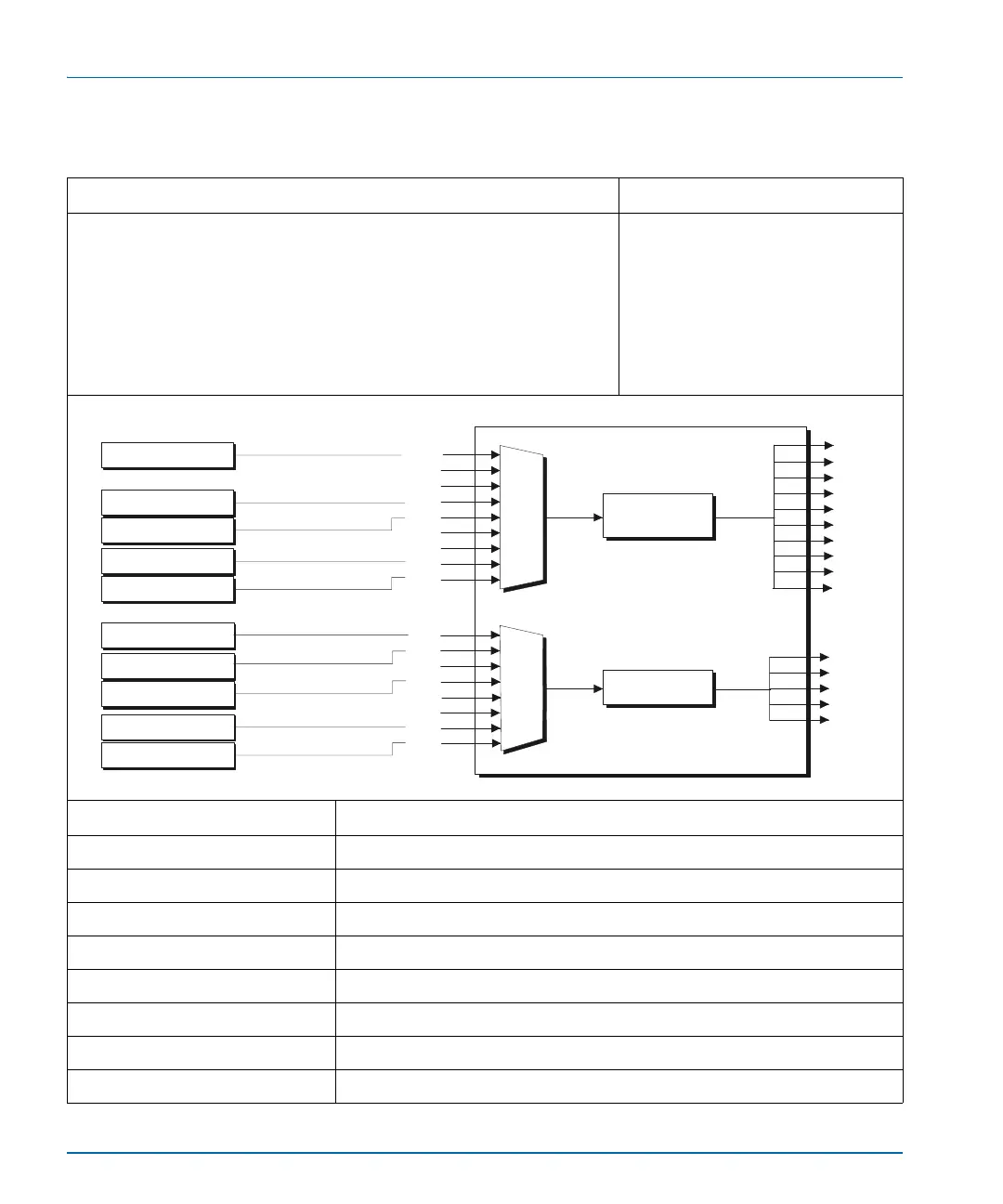

Table 2-2. Critical Input Video Processing for Satellite/Microwave Reception
Description Products
The X75HD auto-detects and then switches HD-SDI main and backup
receivers (with an SDTV backup receiver) through the video processing
engine to provide multiple types of outputs.
Main (primary) and backup (secondary) HDTV receivers provide inputs
which are automatically switched and processed to the required output
format. A tertiary SDTV receiver provides a backup if both HDTV
receivers do not have outputs.
X75HD-AV with X75OPT-A3D
analog video input option
Required Settings Navigation Path
I/P Video Mode Video Setup>Routing Setup>Auto Detect
HD 1/HD-Fiber In Video Setup>Routing Setup>Auto Detect Setup>Highest
HD 2 In Video Setup>Routing Setup>Auto Detect Setup>High
SD 1 In Video Setup>Routing Setup>Auto Detect Setup>Normal
Ch1-Aud Follows Vid Audio Setup>Routing>Audio Follow Video>SRC 1>On
Ch1-AFV-HD1 Audio Setup>Routing>Audio Follow Video>SRC 1>AES1a/1b
Ch1-AFV-HD2 Audio Setup>Routing>Audio Follow Video>SRC 1>AES2a/2b
Ch1-AFV-SD 1 Audio Setup>Routing>Audio Follow Video>SRC 1>AES3a/3b
X75HD
AUX
CBVS
SVID
RGB/S
HD
ENET
HDF
SD
DV
CAV
CBVS
NTSC/ PAL/SECAM
Analog audio
SDI 525, 625
Embedded audio
Embedded audio
SDI 525, 625
AES
AES
HD 1080I, 720P
HD 1080I, 720P
Synchronizer,
up/down/cross
conversion
SVID
SD1
HD1
HD2
HDF
SD2
DV
CAV
Main
Backup
Backup
AA
AA
DV
DV
SD
HD
AES
AES
Synchronizer
SD1
HD1
HD2
HDF
SD2
