Colortran Encore Control Console
Software Version 3.05
36
The Group Display (a blind display)

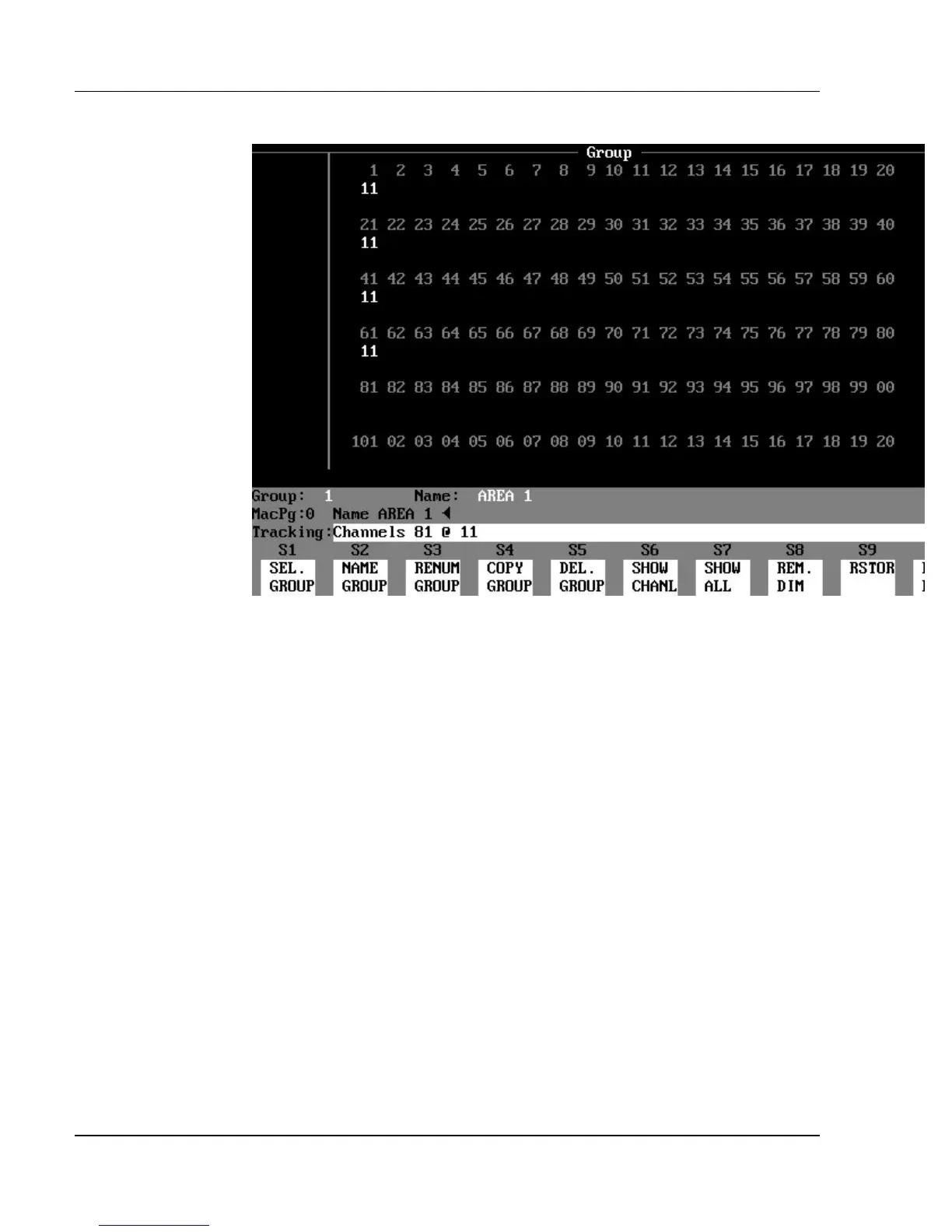

Figure 3.7, Group Display
Purpose of the Group Display: The Group display shows the
channel levels assigned to all existing groups. A group is a collection of
channels set at levels that may be created or edited in this display. A group is
just like a submaster but without the slider control. Groups are "building
blocks" used to create cues, effects or submasters. All edits to channel levels
are recorded as they are made (the Record Group command is not necessary to
create or edit groups while in the Group display).
Contents of the Group Display: The Group display shows the
channel levels of any recorded Group. The upper part of the display shows rows
of channels and their respective levels. The channel numbers, located above
the levels, appear in the following colors:
?? cyan = Normal channels
?? magenta = Automated channels
The numbers below each channel number is the level of each channel. If no
level is listed, the level is zero.
