Control panel rear cover removal
1 Remove the control panel display assembly. See “Control panel display assembly removal” on page
255.

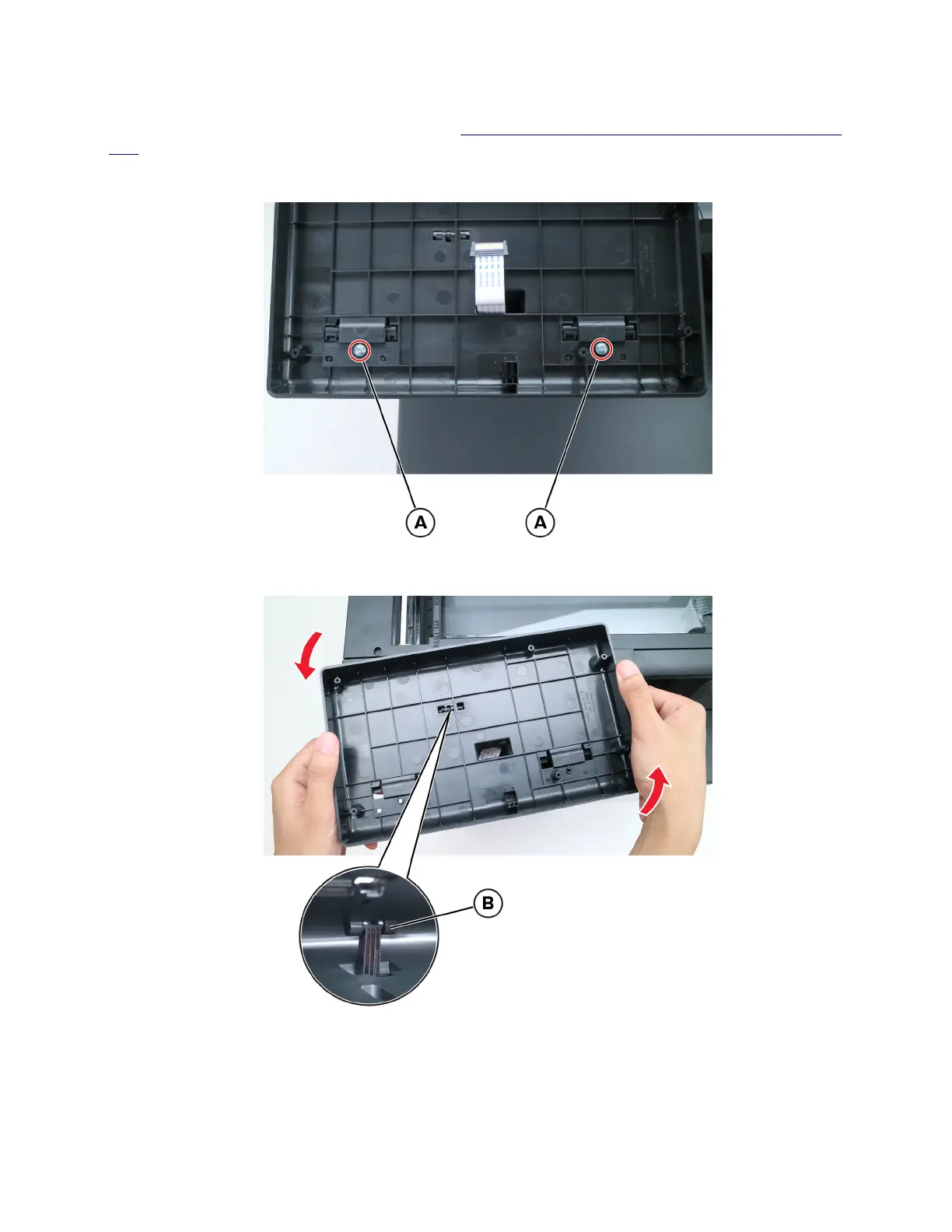

2 Remove the two screws (A), and then release the cover from the hinges.
Note: Twist the cover to release the hinge (B) underneath it.
7018
Parts removal
258
