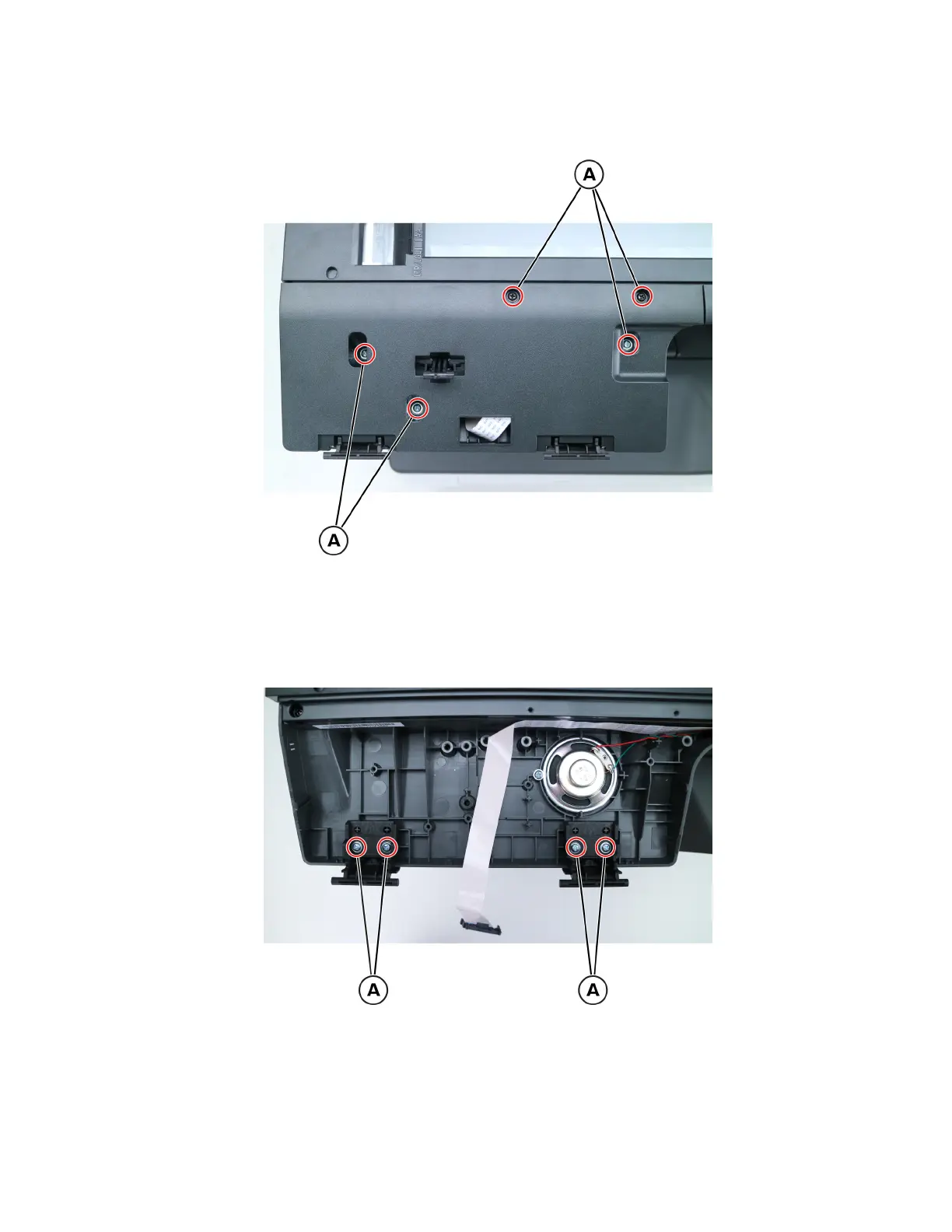

Control panel support cover removal

1 Remove the ﬁve screws (A).

2 Remove the cover.

Control panel hinges removal

1 Remove the four screws (A).

2 Remove the hinges.

7018

Parts removal

259
