MERLIN LEGEND Communications System Release 6.1
Feature Reference
555-661-110
Issue 1
August 1998
Features
Page 169Coverage

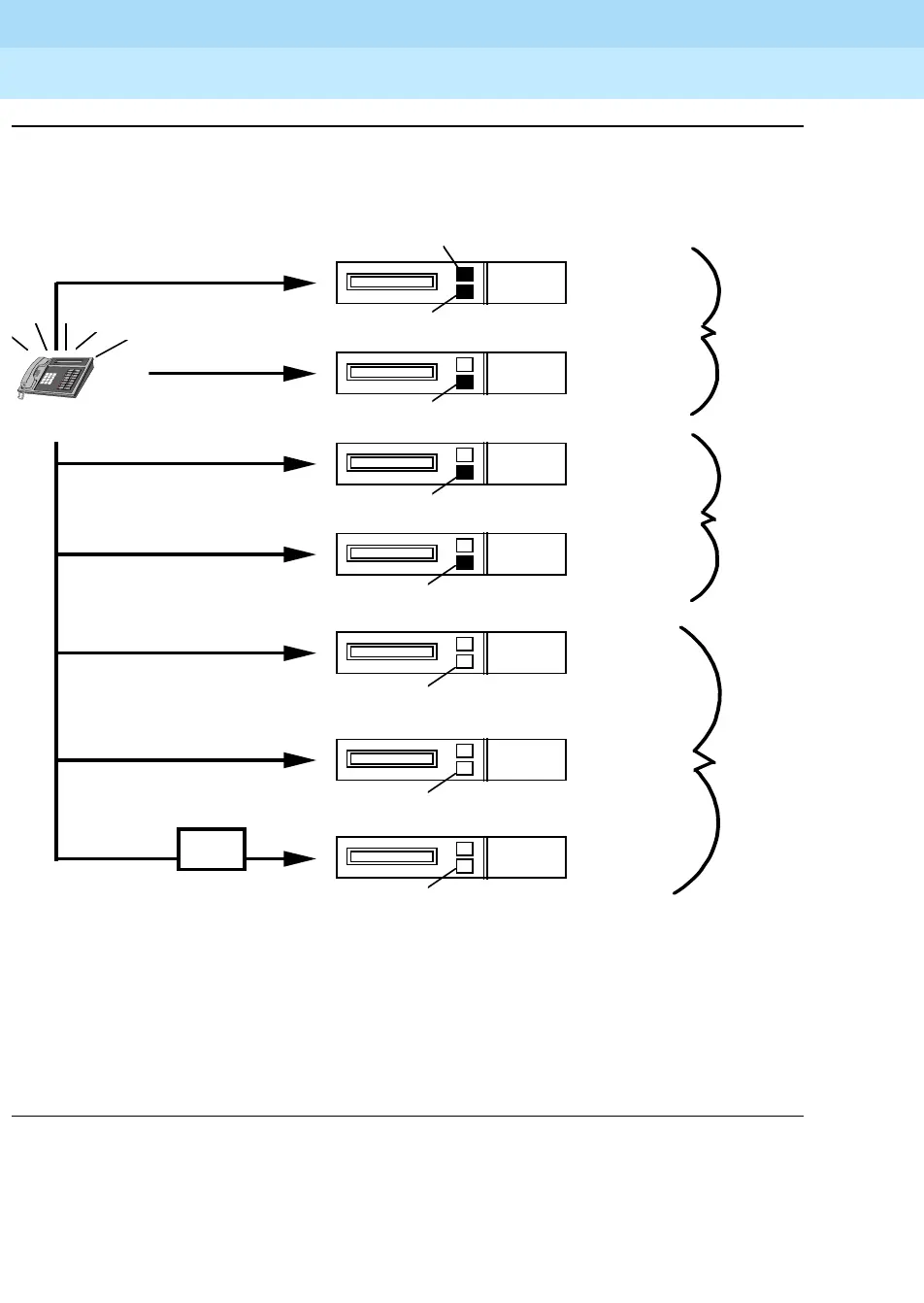

Figure 8. Individual (Primary and Secondary) and Group Coverage Ringing Patterns
(Release 4.1 and Later Systems Only)
Settings:
Primary Cover Ring Delay = 2 rings
Secondary Cover Ring Delay = 2 rings
Group Coverage Ring Delay = 3 rings
Sender Extension 12
Member of Coverage Group 4
Immediate ring
2-ring delay
2-ring delay
(fixed)
4-ring delay
(Fixed 2-ring delay
+ Secondary Cover Ring Delay)
(Primary Cover Ring Delay
+ Group Coverage Ring Delay)
(Fixed 2-ring delay
+ Primary Cover Ring Delay
+ Group Coverage Ring Delay)
(Primary Cover Ring Delay
+ Group Coverage Ring Delay)
5-ring delay
7-ring delay
5-ring delay
Group Cover
Group 4
Group Cover
Group 4
Call 1
Primary Cover
Ext. 12
Red LED on
Green LED
flashes immediately
Primary Cover
Ext. 12
Green LED
flashes immediately
Secondary
Cover
Ext. 12
Green LED
flashes immediately
Secondary
Cover
Ext. 12
Green LED
flashes immediately
Immediate ring
when operator
is available
QCC
queue
Receiver G
QCC system
operator
Ring option:
N/A
Receiver F
Ring option:
Delay
Receiver E
Ring option:
Immediate
Receiver D
Ring option:
Delay
Receiver C
Ring option:
Immediate
Receiver B
Ring option:
Delay
Receiver A
Ring option:
Immediate
Primary
Individual
Coverage
Receivers
Group
Coverage
Receivers
First
audible
ring
Secondary
Individual
Coverage
Receivers
(Primary Cover Ring Delay)
Green LED
flashes after 5 rings
Green LED
flashes after 5 rings
Green LED
flashes after 5 rings
