Page 634Station Message Detail Recording (SMDR)
SMDR Report Fields 42
Figure 43 shows a sample SMDR report in ISDN format. The topics that follow
describe each of the fields (columns) in an SMDR report.

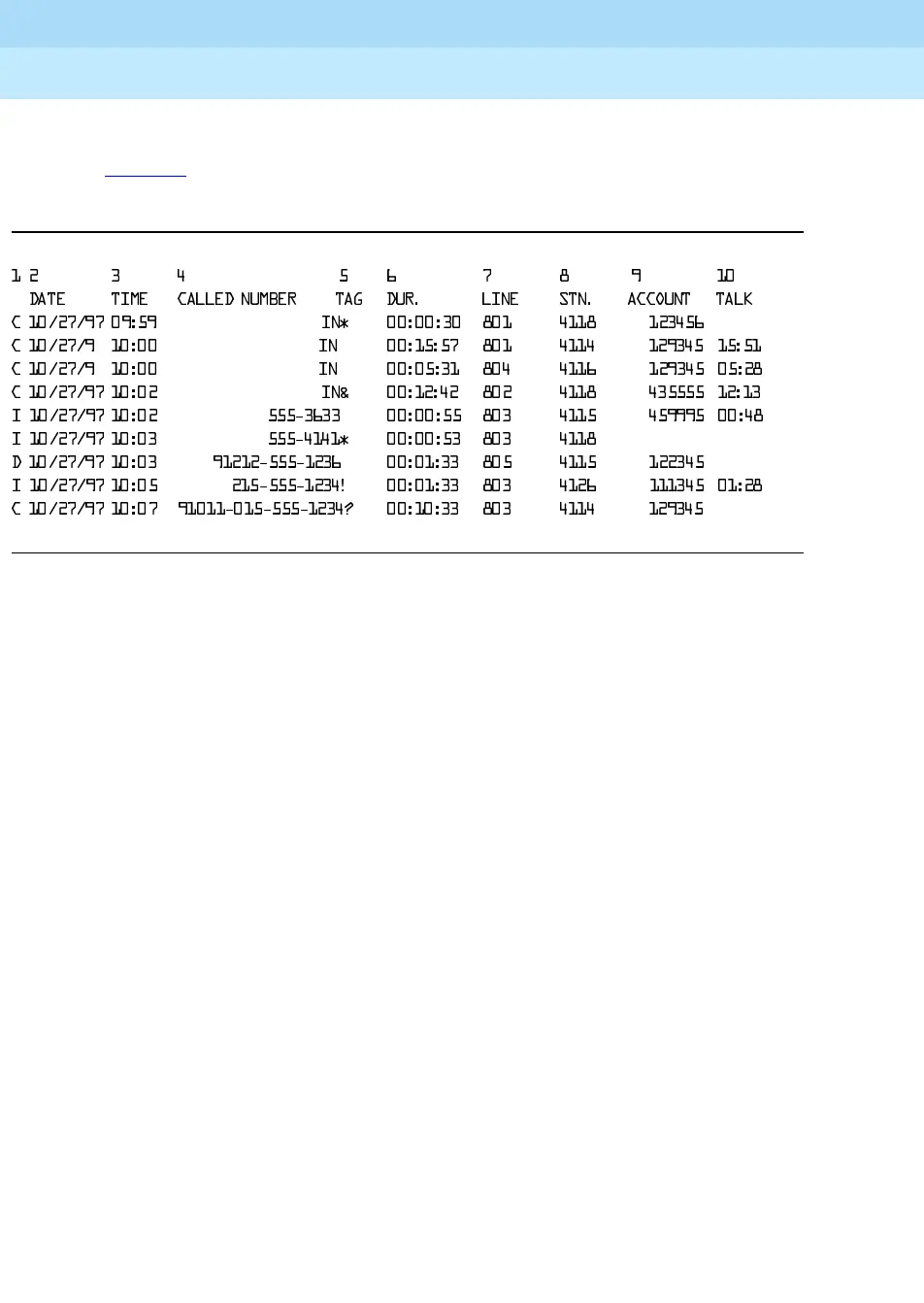

Figure 43. Sample SMDR Report in ISDN Format
A page heading indicates the name of most fields in an SMDR record. Caller ID is
available in Release 3.0 and later systems only. The TALK field is available in
Release 4.2 and later systems only. Interpret each field as described in the
following topics.
CALL TYPE (Column 1) 42
In Basic format, the values in this column have the following meanings:
■ & indicates an incoming or outgoing voice call on an analog or digital
facility.
■ ' indicates an incoming or outgoing data call on a digital facility.
In ISDN format, Release 2.0 and prior systems, the values in this column have the
following meanings:
■ & indicates an incoming or outgoing voice call on a non-PRI facility.
■ ' indicates an outgoing data call on a PRI facility.
■ , indicates an incoming voice or data call on a PRI facility.
In ISDN format, Release 3.0 and 3.1 systems, the values in this column have the
following meanings:
■ & indicates either an outgoing voice call or an incoming voice call without
ANI or Caller ID information.
■ ' indicates an outgoing data call on a PRI facility.
'$7( 7,0( &$//('180%(57$* '85 /,1( 671$&&2817 7$/.
& ,1
& ,1
& ,1
& ,1
,
,
'
,
& "
