OUTRIGGER COMPONENTS

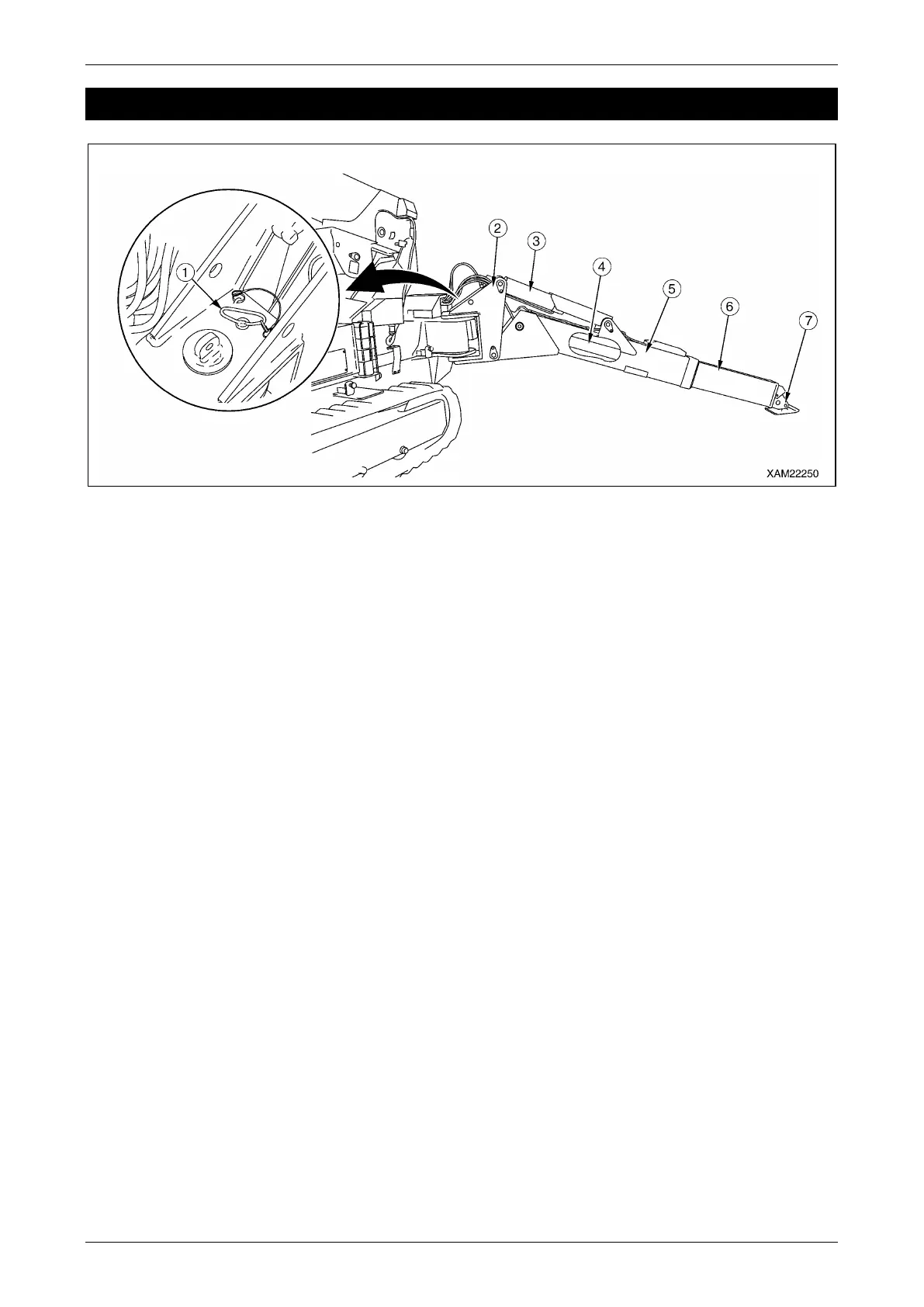

Fig. 4-75
1 - Position pin
2 - Rotary
3 - Outrigger setting cylinder
4 - Outrigger extension cylinder
5 - Outer box
6 - Inner box
7 - Outrigger adapter (Tray)
