Mini-Crawler Crane M A E D A Section 4 – REMOTE CONTROL SYSTEM COMPONENTS
1/2019 MC405C-3 4-97

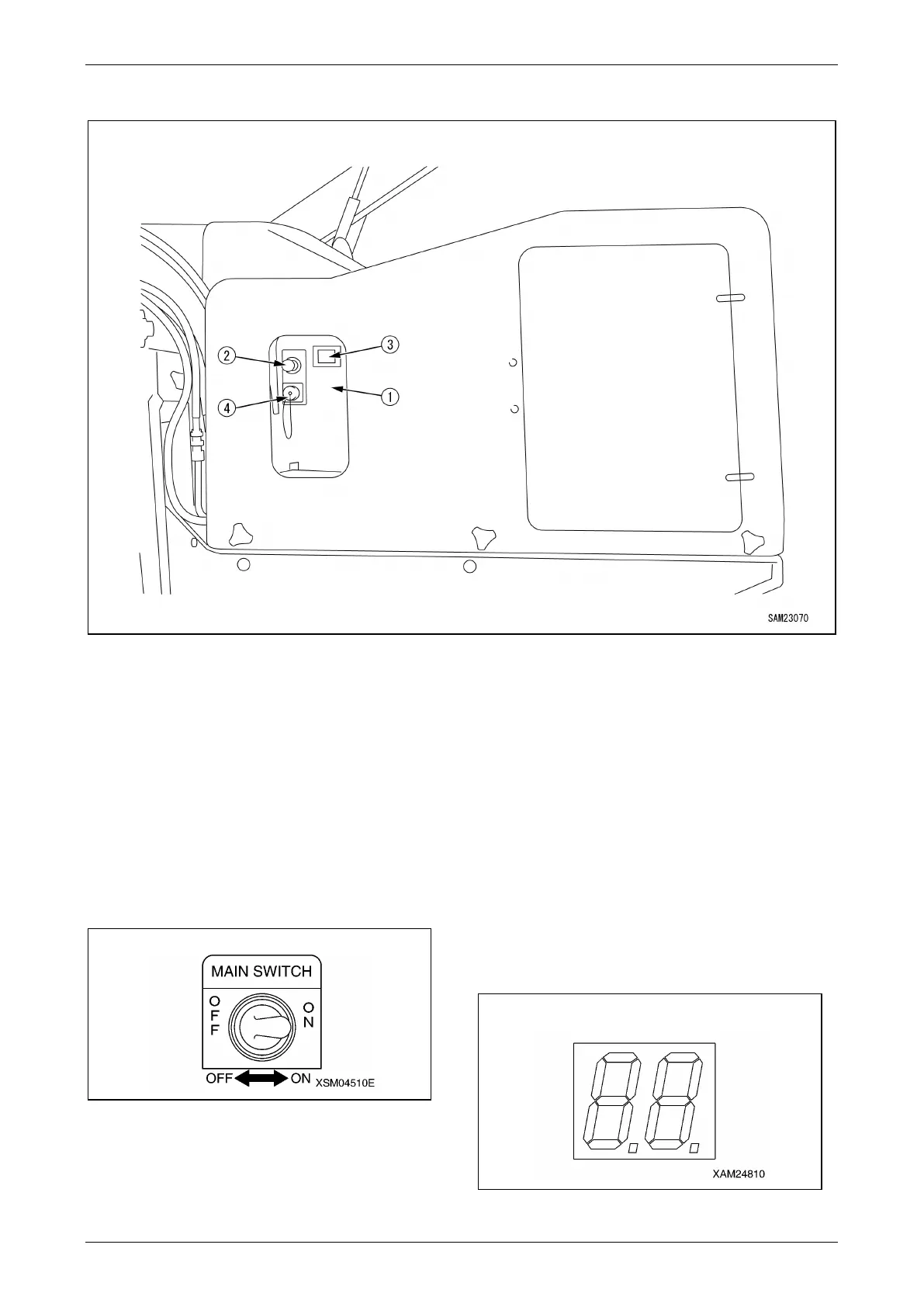

Receiver Components
Fig. 4-251
1 - Control Box
2 - Main Switch
3 - Monitor Display
4 - Receptacle
Control Box
The Control box contains the Receiver devices
and control devices.
Never attempt to dismantle this Control box.
Main Switch
The Main switch is a toggle switch to power ON
or OFF the Receiver
Fig. 4-252
• ON: Turn the toggle to ON to start the
Receiver.
• OFF: Turn the toggle to OFF to terminate the
Receiver.
CAUTION:
• Before starting the engine, always turn this
Main switch of the Receiver to OFF.
• Where the remote control is not in use,
always turn the main switch of the Receiver
to OFF.
Monitor Display
In the event that the abnormal signal detector of
the controller serves, the Monitor display
indicates error codes.
Fig. 4-253
