Section 4 – REMOTE CONTROL SYSTEM COMPONENTS Mini-Crawler Crane M A E D A
4-96 1/2019 MC405C-3

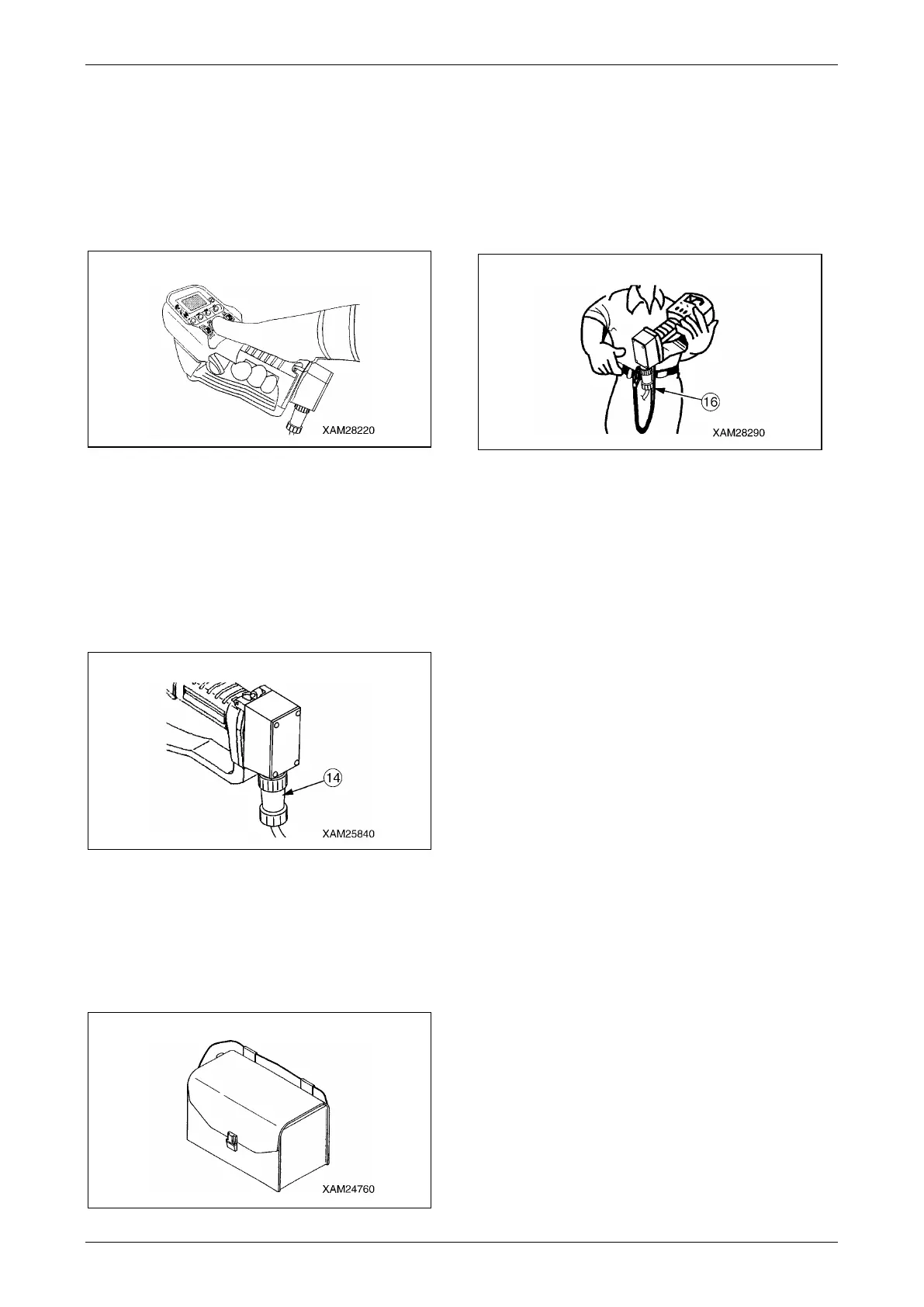

Grip
The Transmitter is designed for one hand
controls in general. Levers and buttons can be
manipulated by your thumb, while the accelerator
lever can be triggered by your forefinger. Other
fingers should grab the grip to hold the
Transmitter.
Fig. 4-247
Connection Cable
The connection cable is a cable between the
Transmitter and Receiver.
Before and after the operation, always check this
connection cable for any crack or damage, or
bent. In addition, check the receptacle for any
damage.
Fig. 4-248
Storage Case
The Storage case is a compact bag for protection
of the Transmitter.
Before putting it into this case, ensure that the
power of the Transmitter is OFF.
Fig. 4-249
Hook Belt
During the operation, this belt prevents the
Transmitter from falling down to the ground,
when the operator drops it by mistake.
Hook one end of the hook belt (16) to the
Transmitter and attach another end to the
operator’s waist belt, or such.
Fig. 4-250
