Maeda MC405C-3 - Fly-Jib Components (Option)

Mini-Crawler Crane M A E D A Section 4 – FLY-JIB COMPONENTS (OPTION)
1/2019 MC405C-3 4-149
FLY-JIB COMPONENTS (OPTION)

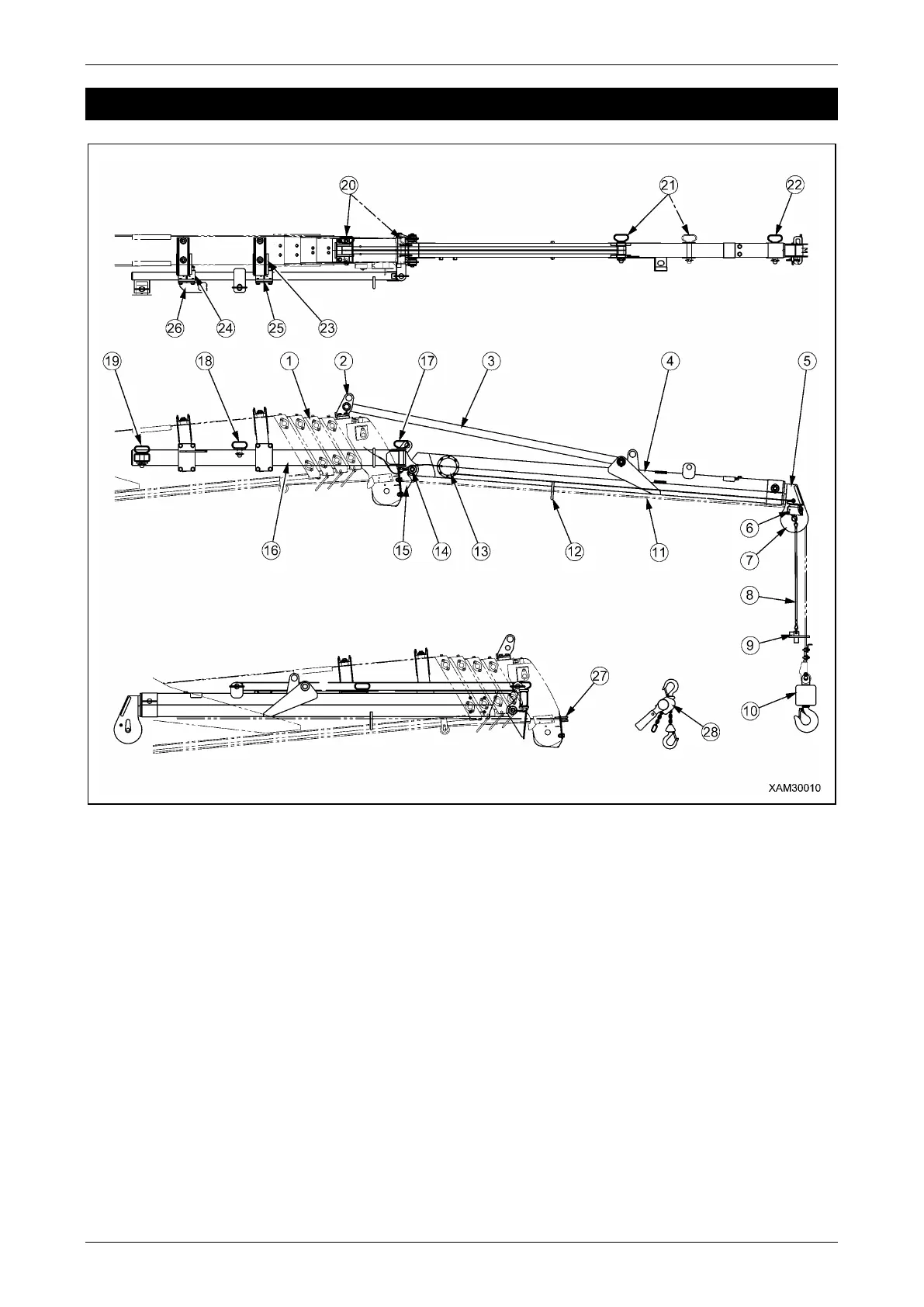

Fig. 4-425
1 - Main boom
2 - Rod bracket
3 - Supporting rod
4 - No.1 fly-jib
5 - No.2 fly-jib
6 - Over winding detector
7 - Sheave
8 - Protective rope
9 - Protective Weight
10 - Single fall hook block
11 - Wire rope
12 - Hook holder
13 - Cord real
14 - Hoot pin
15 - Jib bracket
16 - Stowing bar
17 - Position pin 150L
18 - Position pin 55L
19 - Position pin 95L
20 - Position pin 135L
21 - Position pin 135L
22 - Position pin 135L
23 - Bar guide A
24 - Bar guide B
25 - Bar guide C
26 - Bar guide D
27 - Sheave for fly-jib stowing (Accessory)
28 - Lever block (Accessory)
