Maeda MC405C-3 - MACHINE COMPONENTS

Section 4 – MACHINE COMPONENTS Mini-Crawler Crane M A E D A
4-2 1/2019 MC405C-3
MACHINE COMPONENTS

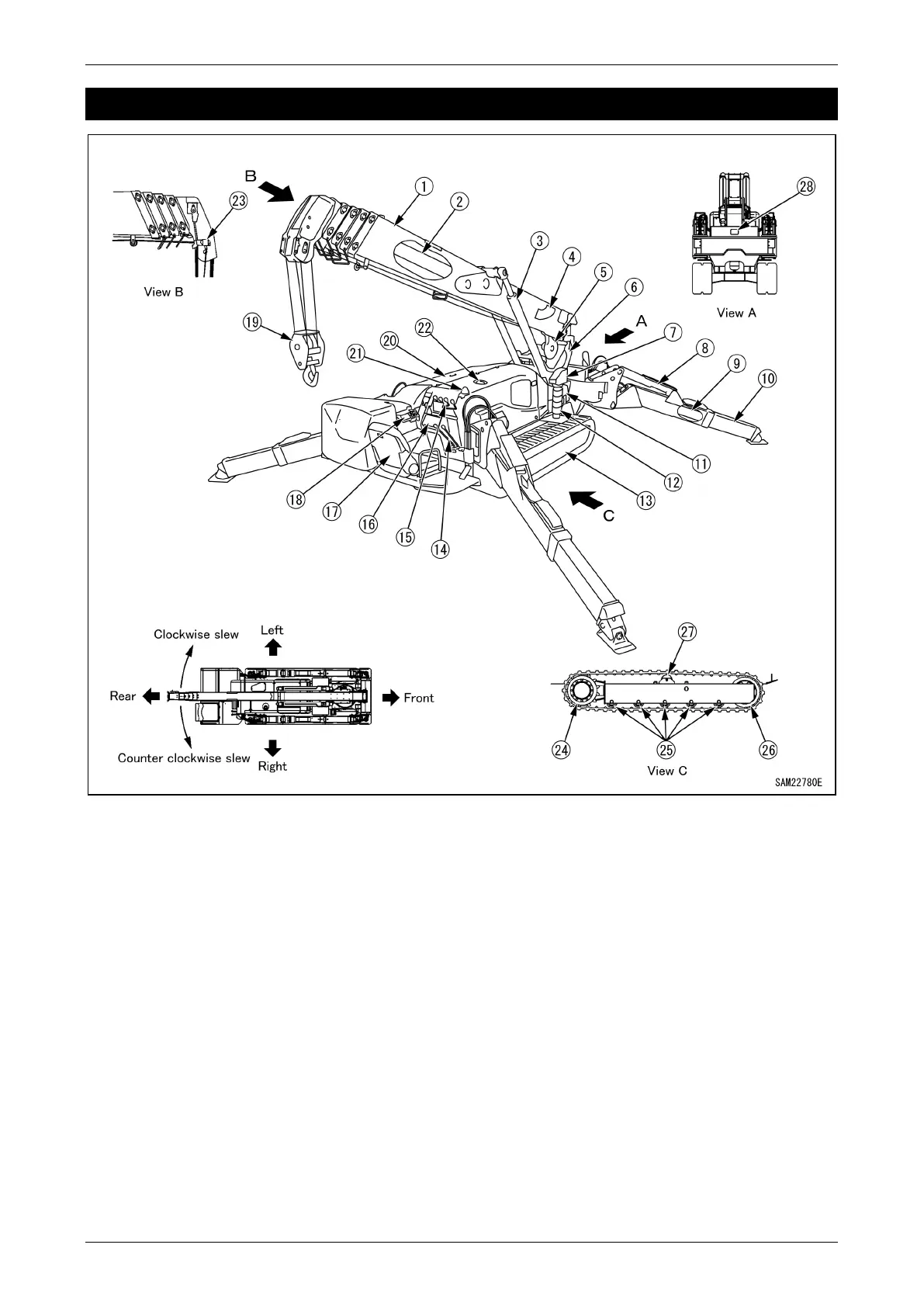

Fig. 4-1
1 - Boom
2 - Boom telescoping cylinder (Inside the boom)
3 - Boom derricking cylinder
4 - Angle indicator
5 - Winch
6 - Post
7 - Moment limiter converter
8 - Outrigger setting cylinder
9 - Outrigger extension cylinder (Built in the
box)
10 - Outrigger
11 - Slewing device
12 - Working status lamp
13 - Rubber track
14 - Travel control
15 - Crane control
16 - Moment limiter display unit
17 - Operation seat
18 - Instrument panel
19 - Hook block
20 - Hydraulic oil tank (Inside machinery cover)
21 - Outrigger un-set warning lamp
22 - Fuel tank (Inside machinery cover)
23 - Over winding detector
24 - Travelling motor and sprocket
25 - Track roller
26 - Idler
27 - Carrier roller
28 - Working light
