Section 4 – TRANSPORTATION Mini-Crawler Crane M A E D A
4-176 1/2019 MC405C-3

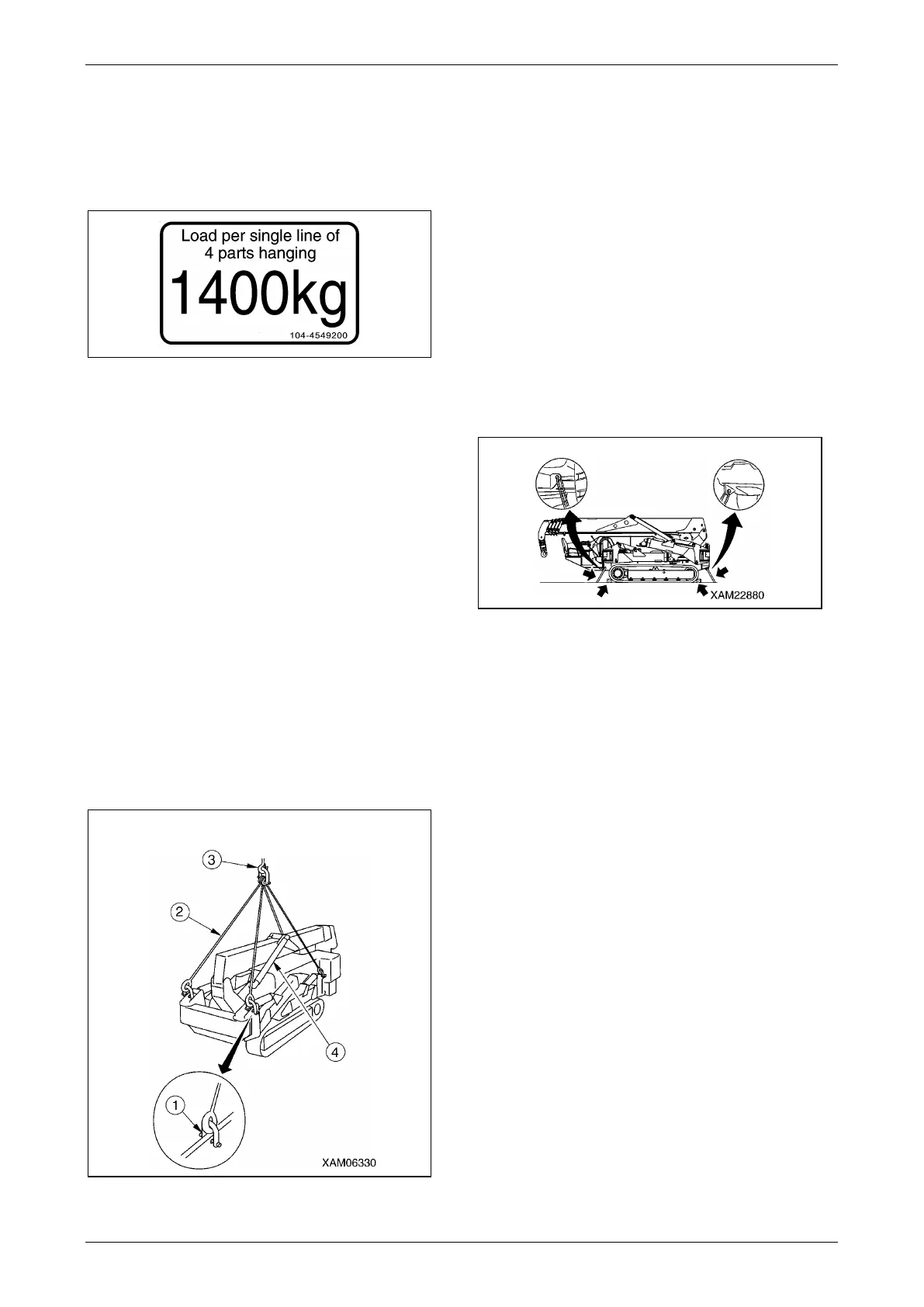

The dimensions are for standard
specifications. The hoisting method varies
depending on the attachments and options
mounted. In that case, contact us or our
sales service agency.
Fig. 4-525
Hoist the machine on the solid and flat ground
using the following procedure.
1. See "TRAVELLING POSITION" on page 4-
23 and put the machine in the "travelling
posture".
2. Verify that the position pins (four) are
securely inserted in the rotary joint of the
outrigger.
3. Install a shackle (1) to the holes (4 locations)
on the outrigger rotaries and hang the
hoisting attachments (2) over the hook (3).
4. As soon as the machine leaves the ground,
stop and wait until the machine is stabilised.
Then slowly hoist the machine.
5. Check the changes in the posture due to the
leakage from the hydraulic circuit on the
head side of the derricking cylinder (4) when
the machine is hoisted.
Fig. 4-526
NOTICE:
Recommended hoisting attachments
• Wire ropes (two in front):
breaking force of 9.0 t or more
• Wire ropes (two in back):
breaking force of 9.0 t or more
• Shackle: load used 1.5 t or more
Cautions on Loading Machine
WARNING! Select flat and solid ground for
loading/unloading the machine. Keep
sufficient distance from the shoulders.
Load the machine to the specified position on the
trailer and secure the machine with the following
procedure.
Fig. 4-527
1. Stop the engine and remove the key of the
starter switch.
2. Provide a square timber in front and back of
the rubber tracks to prevent the machine
from moving during transportation. Secure
the machine with chain or wire rope.
Secure it surely, especially not to let it slip to
the side.
Cautions During Transportation
WARNING! Take road width, height, and
weight into consideration in determining the
transportation route.
If there are applicable local laws and regulations,
observe these laws and regulations for safe
transportation.
If not, contact us or our sales service agency.
To Next Page
