Starting Engine with Booster Cable
Start the engine with booster cable as described
below.
Cautions on Connecting/Disconnecting
Booster Cable
WARNING!
• Never let the (+) terminal and (-) terminal
come into contact with the other when
connecting the cable.
• Wear goggles and rubber gloves when
starting the engine with the booster cable.
• Do not let the normal machine and machine
in failure come into contact with the other.
Because the battery produces hydrogen
gas, sparks around the battery can cause
explosion.
• Do not make mistakes in connecting the
booster cable. Note that there will be some
sparks when making the last connection.
Make this connection at the location as far
as possible from the battery.
• Do not let the booster cable clips contact
the other or machine when disconnecting
the booster cable.

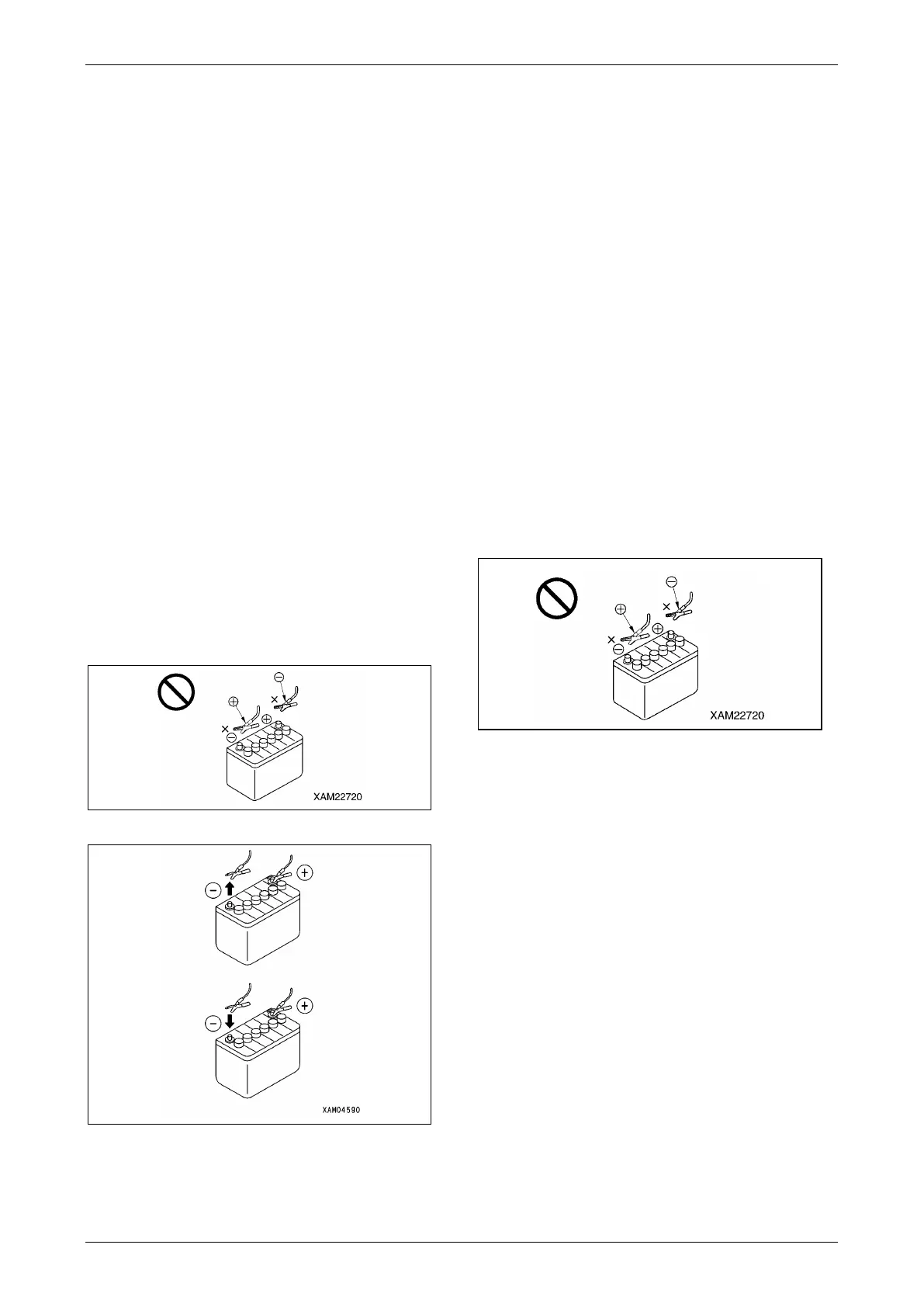

Fig. 5-125
Fig. 5-126
WARNING!
• Start the engine by two persons, with one
standing on the operation position in the
travel operation panel side.
• When starting using other machine, be
careful to prevent contact between the
normal machine and broken machine.
• Keep the starter switch key of both the
normal machine and the broken machine in
OFF position when the booster cable is
connected.
• Do not connect to wrong side [connecting
(+) to (-), (-) to (+)] when connecting the
booster cable.
• Start connecting from (+) terminal first, but
start disconnecting from (-) terminal
(ground) first.
• Connect the ground to the (-) terminal of the
battery of the broken machine when
connecting the ground as the last
procedure.
Fig. 5-127
CAUTION:
• Use booster cable and clips of appropriate
size for the battery size.
• The battery in the normal machine and
machine in failure should be of the same
capacity.
• Check that the cable and clips have no
breakage and corrosion.
• Connect the clips securely.
• Verify that the operation levers are at the
"Neutral" position.
