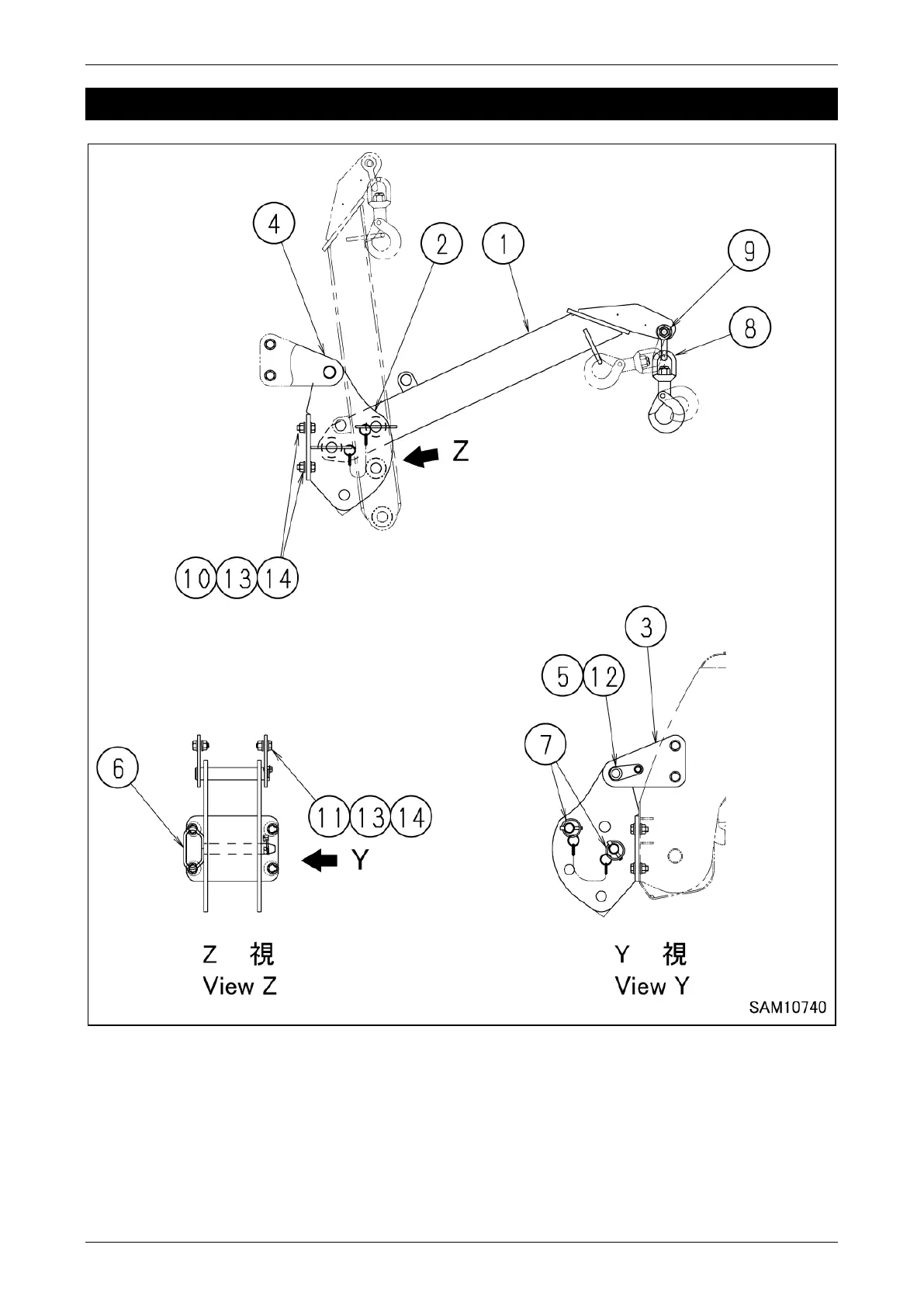

850 kg SEARCHER HOOK COMPONENTS (OPTION)
Fig. 4-404
1 - E-Boom
2
- Bracket
3
- Bracket 1
4
- Bracket 2
5
- Pin
6
- Position pin
7 - Lynch-pin
8 - Hook
9 - Shackle
10 - Hexagonal bolt with washer (strength 10.9)
11 - Hexagonal bolt with washer (strength 10.9)
12 - Hexagonal bolt with washer (strength 10.9)
13 - Nut (strength 10)
14 - High tension washer
